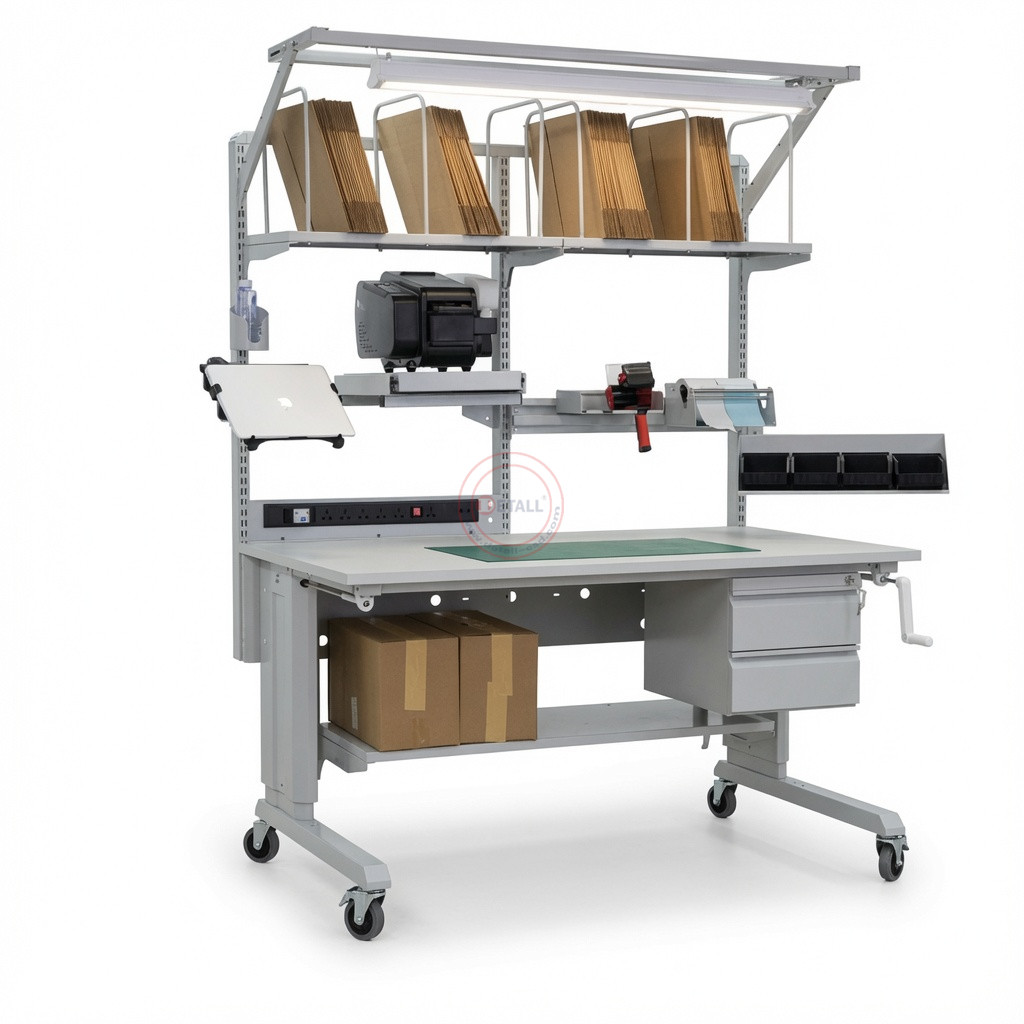

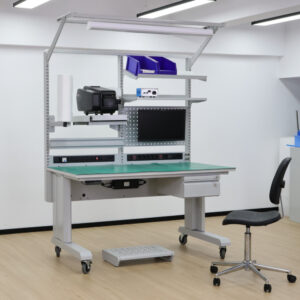

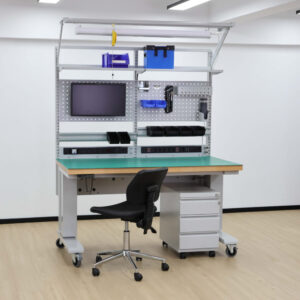

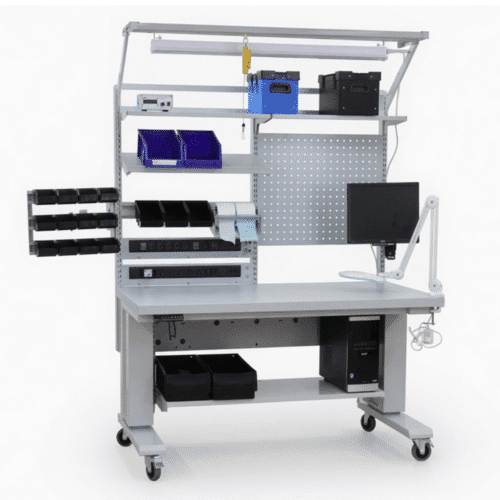

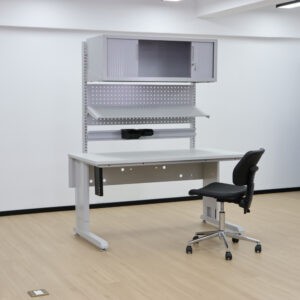

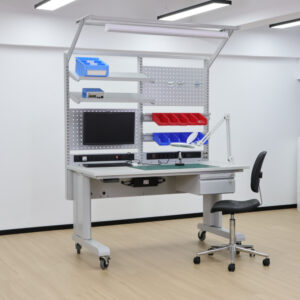

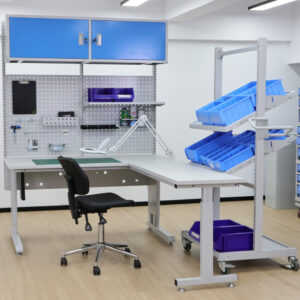

Electric Adjustable Workbench - 200kg
Offers fast one-touch electric height adjustment (720–1060 mm) with 4 memory presets, enabling easy sit-stand alternation for precision electronics labs and R&D stations requiring frequent posture changes.

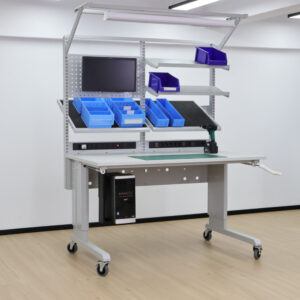

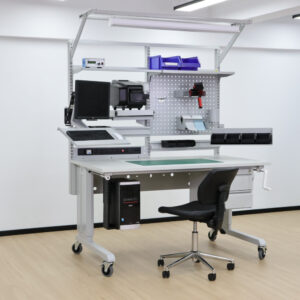

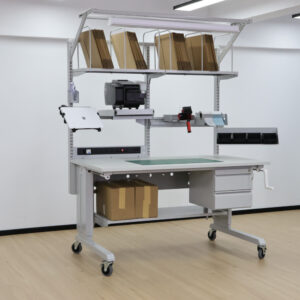

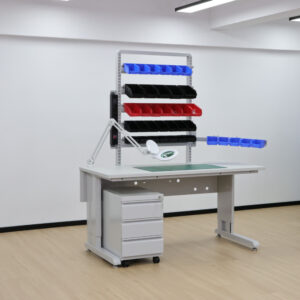

Crank Adjustable Workbench
Features smooth crank-operated height adjustment (670–1120 mm) with silent linkage, no power required, ideal for frequent height changes in budget-conscious laboratory and assembly workstations..

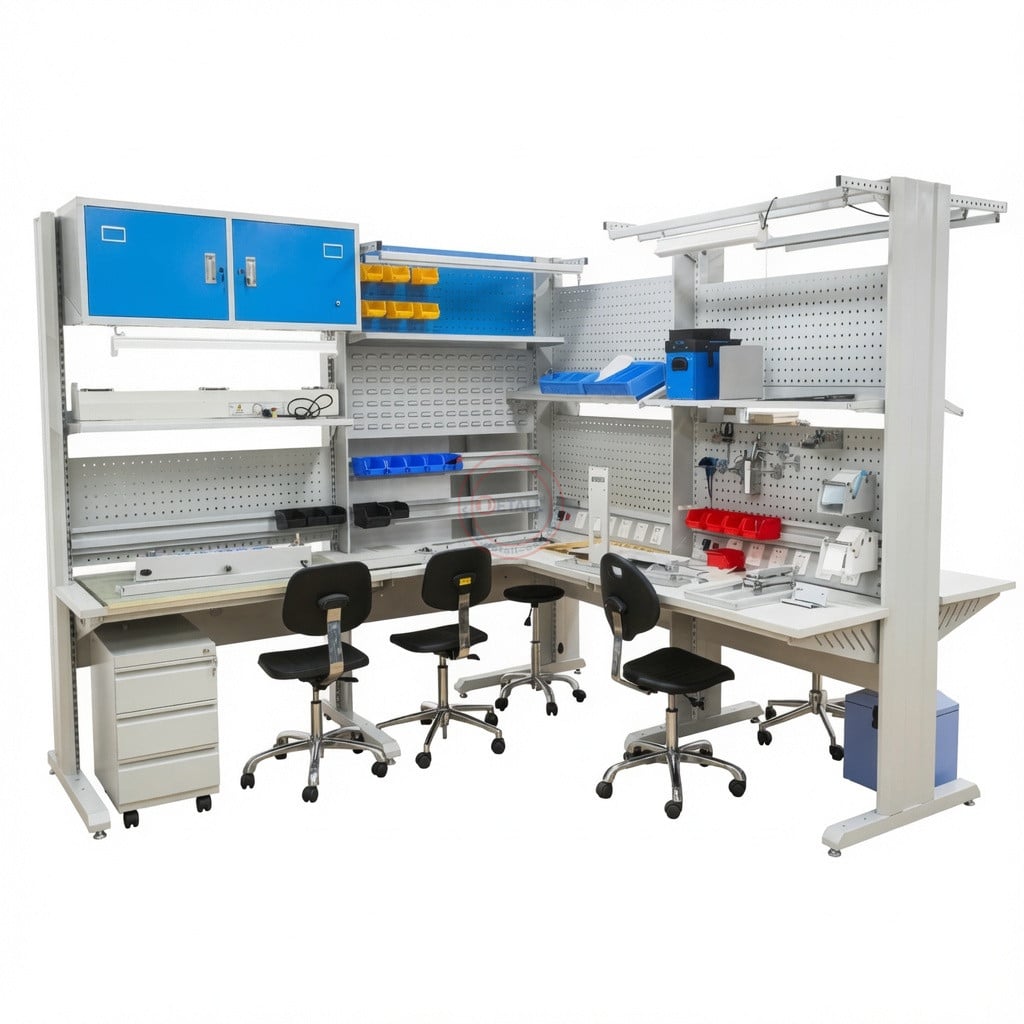

Space-link Pro Workstation
Utilizes T-shaped floor-standing columns with multi-directional linking, allowing infinite horizontal, vertical, or 90° expansion to create dual workstations from a single column, maximizing laboratory space utilization and reducing per-station cost..

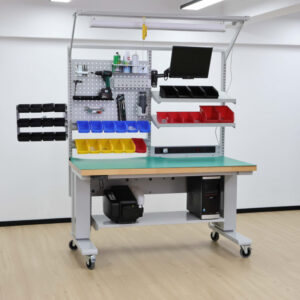

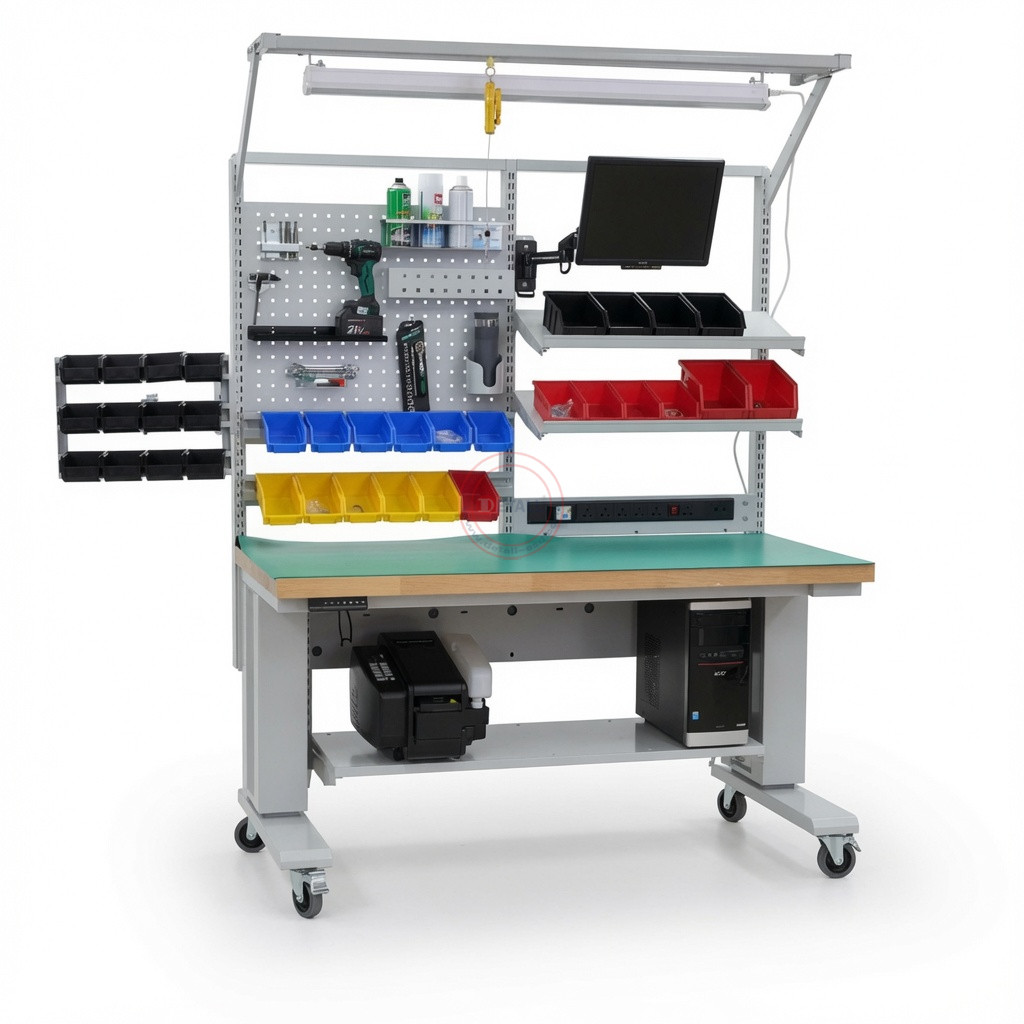

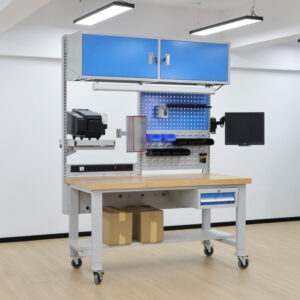

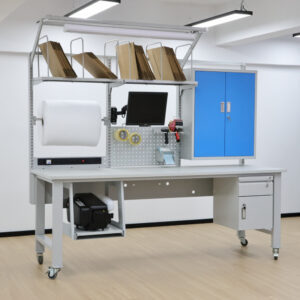

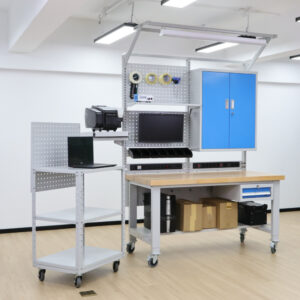

Electric Adjustable Workbench - 500kg
Delivers powerful electric height adjustment with 600 kg static load capacity and memory presets, designed for heavy equipment, large instruments, and high-load laboratory testing workstations..
What Is an ESD Workbench?
ESD Workbench (also known as Anti-Static Workbench or ESD-Safe Bench)is a specialized workstation designed to prevent the buildup and uncontrolled discharge of electrostatic charges that can damage sensitive electronic components. It forms the physical foundation of an Electrostatic Protected Area (EPA). providing a safe environment for assembling, testing, repairing, and handling ESD-sensitive devices.
Unlike standard industrial workbenches, every structural element of an ESD workbench uses static-dissipative materials that safely and gradually dissipate electrostatic charges to ground. This controlled dissipation prevents sudden electrostatic discharges (ESD) while keeping all surfaces, tools, and personnel at the same electrical potential, effectively protecting sensitive components.
What separates a properly designed ESD workbench from a standard bench with a mat placed on top is the integration of grounding architecture into the bench structure itself: bonded ground connections, a verified dissipative work surface with defined surface resistivity, and an organized system for connecting wrist straps, tool grounding cables, and equipment bonding leads to a single common point.
Key Terminology
Term | Definition |
|---|---|
EPA (Electrostatic Protected Area) | A defined workspace where ESD control measures are implemented and maintainedo |
ESD (Electrostatic Discharge) | The sudden flow of electricity between two objects with different electrostatic potentials |
CPG (Common Point Ground) | A single grounding hub connecting all elements of the workstation to facility earth ground |
Surface Resistivity | A material property (Ω/sq) indicating how readily charge flows across a surface |
Dissipative | A material that allows charge to flow slowly and in a controlled manner (10⁶–10⁹ Ω) |
Wrist Strap | A conductive band worn by the operator to maintain continuous personal grounding |
Why ESD Control at the Workbench Level Matters
Electrostatic discharge is one of the leading causes of latent and catastrophic failure in electronic components. What makes it particularly dangerous is that the majority of damage is invisible at the time it occurs.
- A person walking across a carpeted floor can accumulate 35,000V of static potential
- Picking up a plastic bag can generate 20,000V
- Sliding across a standard office chair: 18,000V
- Reaching into a component bin with an ungrounded hand: potentially thousands of volts
Many ESD-sensitive devices — CMOS ICs, MOSFETs, RF transistors, precision sensors — can be permanently damaged by discharges as low as 100–250V. The damage threshold is far below what a human can feel (the threshold for perceptible static shock is around 3,000V).
More critically, studies estimate that 60–90% of all ESD damage is latent — the component passes testing, gets assembled into a product, and fails in the field weeks or months later. The cost of a latent failure — warranty claim, field return, reputation damage — is orders of magnitude higher than the cost of the component itself..
The Cost of Doing Nothing
Scenario | Estimated Cost |
|---|---|
Failed IC component (direct) | $0.10 – $50 per component |
Rework labor (board-level) | $50 – $500 per incident |
Field return (warranty) | $200 – $2,000+ per unit |
Reputation / customer churn | Incalculable |
A properly configured ESD workbench interrupts this process at its source. The investment in compliant infrastructure is measured in hundreds of dollars. The cost of a single latent failure escaping to the field is measured in thousands..
ESD Compliance Standards: What They Require of Your Workbench
IEC 61340-5-1
The primary global standard for protection of electronic devices from electrostatic phenomena. Defines the EPA concept, specifies required resistance measurements for work surfaces (≥ 1×10⁵ Ω and ≤ 1×10⁹ Ω), and establishes qualification and periodic verification requirements.
ANSI/ESD S20.20
The North American standard, harmonized with IEC 61340-5-1. Adds detailed procedures for ESD program documentation, training, and auditing. Required for ESDA certification programs.
ISO 6385 — Ergonomics Principles
Framework for ergonomic workstation design. Surface height ranges, reach zone geometry, and lighting requirements applicable to height-adjustable ESD bench selection.
OSHA Ergonomics Guidelines
General Duty Clause requirements for ergonomic risk management in assembly environments — workstation height, reach distance, repetitive motion risk.
What These Standards Require of an ESD Workbench
- Work surface resistance to ground: ≥ 1×10⁵ Ω and ≤ 1×10⁹ Ω
- Common point ground connection resistance: ≤ 1 Ω
- No uncontrolled insulators (> 1×10¹¹ Ω) within 30cm of ESD-sensitive devices.
- Periodic verification — minimum annually, recommended quarterly.
- Operator grounding verified at the start of each shift.
Applications: Where ESD Workbenches Are Required
Electronics Manufacturing & SMT Assembly
PCB assembly, component placement, soldering, inspection, and functional test all involve direct contact with ESD-sensitive components. The workbench is the primary EPA anchor point in the assembly cell. Multi-station production cells use a shared ground bus bar with all bench CPG sockets bonded to a single facility earth point.
PCB Assembly & Repair
Rework operations carry a higher per-incident ESD risk because they involve opening assembled boards and handling individual components that may have reduced ESD immunity after partial solder exposure.
Semiconductor and Wafer Handling
Bare die and wafer handling is the highest ESD risk environment — no package-level protection. ESD workbenches in these environments are typically supplemented with ionization systems to neutralize charge on non-groundable surfaces.
Medical Device Manufacturing
ESD control is a required element of the quality management system under ISO 13485 for implantable devices, diagnostic electronics, and patient monitoring equipment.
Aerospace and Defense Electronics
MIL-STD-1686 and JEDEC standards for aerospace applications reference IEC 61340-5-1 requirements. Aerospace-grade EPA setups require full documentation including workbench serial numbers, calibration records, and periodic audit reports.
R&D Laboratories and Prototype Development
Prototype PCBs and development boards are often more vulnerable than production components due to the absence of full ESD protection circuitry. R&D environments benefit from full EPA setups to protect expensive, irreplaceable prototype hardware.
Packaging & Logistics
Component repackaging, kitting, and outbound inspection operations require EPA-level protection wherever ESD-sensitive devices are handled outside their original ESD packaging.
Industrial Assembly
Any industrial assembly process incorporating electronic sub-assemblies — motor controllers, sensor modules, IoT devices, power electronics — requires ESD-safe handling at the integration stage.
Who Uses ESD Workstations?
ESD Engineers & Compliance Managers
Primary concern: EPA compliance, audit readiness, verifiable documentation.
ESD engineers are responsible for designing, implementing, and maintaining the facility’s ESD control program. Their workbench evaluation focuses on: compliance with IEC 61340-5-1 or ANSI/ESD S20.20, availability of grounding verification test reports, work surface resistivity data, and the ability to integrate the workbench into periodic audit records.
Detall provides: documented resistivity data, CPG grounding test reports with every unit, and direct engineering team access for compliance questions.
Process Engineers
Primary concern: Workflow efficiency, station configurability, process flexibility.
Process engineers are responsible for optimizing the assembly workflow at each station. Their workbench evaluation focuses on: accessory compatibility, worksurface size relative to the work piece, cable and power management, and the ability to reconfigure the station as the process changes.
Detall provides: a fully modular accessory ecosystem, 20+ compatible accessories, and engineering consultation on station layout optimization.
Manufacturing Engineers
Primary concern: Standardization, scalability, long-term consistency.
Manufacturing engineers are responsible for specifying workstations across multi-line, multi-site operations. Their workbench evaluation focuses on: dimensional consistency between production batches, accessory compatibility across years of procurement, standardized documentation, and OEM availability for private-label programs.
Detall provides: consistent production from in-house manufacturing, long-term accessory rail compatibility, and OEM/ODM capability since 2014.
Purchasing Managers
Primary concern:Supply stability, cost control, supplier reliability.
Purchasing managers evaluate ESD workbench suppliers on: price competitiveness, lead time reliability, minimum order quantities, and the risk of supply disruption. Direct manufacturer sourcing eliminates intermediary markup and batch variation risk.
Detall provides: direct manufacturer pricing, confirmed lead times (not estimates), no minimum order quantity on standard configurations, and stable supply from a 13,000 m² dedicated production facility.
Factory Owners & Operations Directors
Primary concern: Productivity, long-term investment value, ROI.
Factory owners evaluate ESD workbench investments on total cost of ownership: upfront cost, productivity impact, durability, and upgrade path. A modular system that can be expanded as the business grows is more valuable than a fixed product that must be replaced when requirements change.
Detall provides: a modular platform with a documented upgrade path, durable powder-coated steel construction, and 10+ years of manufacturing history with consistent product availability.
How to Configure the Right ESD Workbench
Step 1 — Choose Your Base Configuration
- Single operator, fixed process → Fixed-height. Specify 750mm, 850mm, or 900mm.
- Shared station, no power at bench → Manual crank.
- Multi-shift, sit-stand, frequent adjustment → Electric with 4-position memory presets.
Step 2 — Choose Your Worksurface
- Standard two-layer ESD mat — General use. Replaceable. Cost-effective.
- Laminate ESD hard surface — Easier cleaning. Solvent-compatible.
- Stainless steel + ESD mat overlay — Heavy-duty / cleanroom.
Step 3 — Choose Frame Width and Depth
Step 4 — Define Your Accessory Set
Step 5 — Finalize Grounding Architecture
- Single station → CPG socket → facility earth ground
- ulti-station row → CPG sockets → shared ground bus bar → single earth ground.
How to Clean and Maintain Your ESD Workbench
Proper cleaning and maintenance keep your ESD workbench performing to standard — protecting sensitive components and maintaining compliance with IEC 61340-5-1 and ANSI/ESD S20.20. Neglecting the surface can cause resistance values to drift outside the safe range, silently undermining your entire ESD control program.
Use the Right Cleaning Products
- Do use： ESD-specific surface cleaners (topical antistat solutions), isopropyl alcohol (IPA) at 70% concentration, or mild soap solutions
- Do not use: Silicone-based sprays, standard glass cleaners (e.g., Windex), bleach, or solvent-based degreasers
- Apply with: A clean, lint-free ESD-safe wipe or microfiber cloth — never abrasive pads or steel wool
Clean the Work Surface Regularly
Daily light cleaning prevents contaminant buildup. Deeper periodic cleaning maintains long-term performance.
Daily routine:
- Wipe down the surface with an IPA-dampened lint-free cloth to remove flux residue, dust, and skin oils
- Remove all tools, trays, and items from the surface before cleaning
- Allow to dry fully before placing any components on the bench
- Apply an ESD topical antistat solution to refresh the surface’s dissipative properties
- Clean underneath removable mats and remove debris from cable channels
- Inspect ground cord connections — wipe contacts clean and re-seat snaps
Test Surface Resistance After Cleaning
Cleaning can temporarily affect surface resistance — always verify before resuming ESD-sensitive work.
- Use a calibrated surface resistance meter to measure point-to-point and point-to-ground resistance
- Acceptable range: 1×10⁶ Ω to 1×10⁹ Ω (dissipative surface)
- If resistance is out of range after cleaning, allow additional drying time or reapply topical antistat
Inspect and Maintain Grounding Connections
The work surface is only ESD-safe when properly grounded. Ground connections should be checked regularly.
- Daily: Visually inspect the ground cord for fraying, kinks, or loose snap connections
- Monthly: Use a wrist strap/mat tester to verify the full ground path from surface to earth
- Annually: Check the 1 MΩ current-limiting resistor in the ground cord for continuity; replace if damaged
Never use tape or improvised connectors to restore a damaged ground connection — replace the ground cord.
Protect the Surface from Physical Damage
The ESD-dissipative layer is a functional coating, not just a surface finish. Physical damage changes its resistance properties.
- Avoid dragging sharp metal tools, PCB edges, or abrasive objects across the surface
- Do not cut directly on the ESD mat — use a separate cutting board
- Never place hot soldering irons directly on the ESD surface; use a proper iron holder
- Avoid exposure to direct sunlight for extended periods — UV degrades some dissipative coatings over time
Replacement Guidelines
Even with proper care, ESD work surfaces have a service life.
- Replace the surface: if resistance testing shows values outside range that cannot be corrected by cleaning or topical antistat treatment
- Replace ground cords: every 1–2 years or immediately if the cable jacket shows cracking or the resistor continuity fails
- Replace wrist straps: every 6–12 months of daily use, or when the go/no-go tester shows a fail
Keeping a maintenance log — date of cleaning, resistance test results, cord inspections — supports compliance documentation and helps identify when replacement is due.

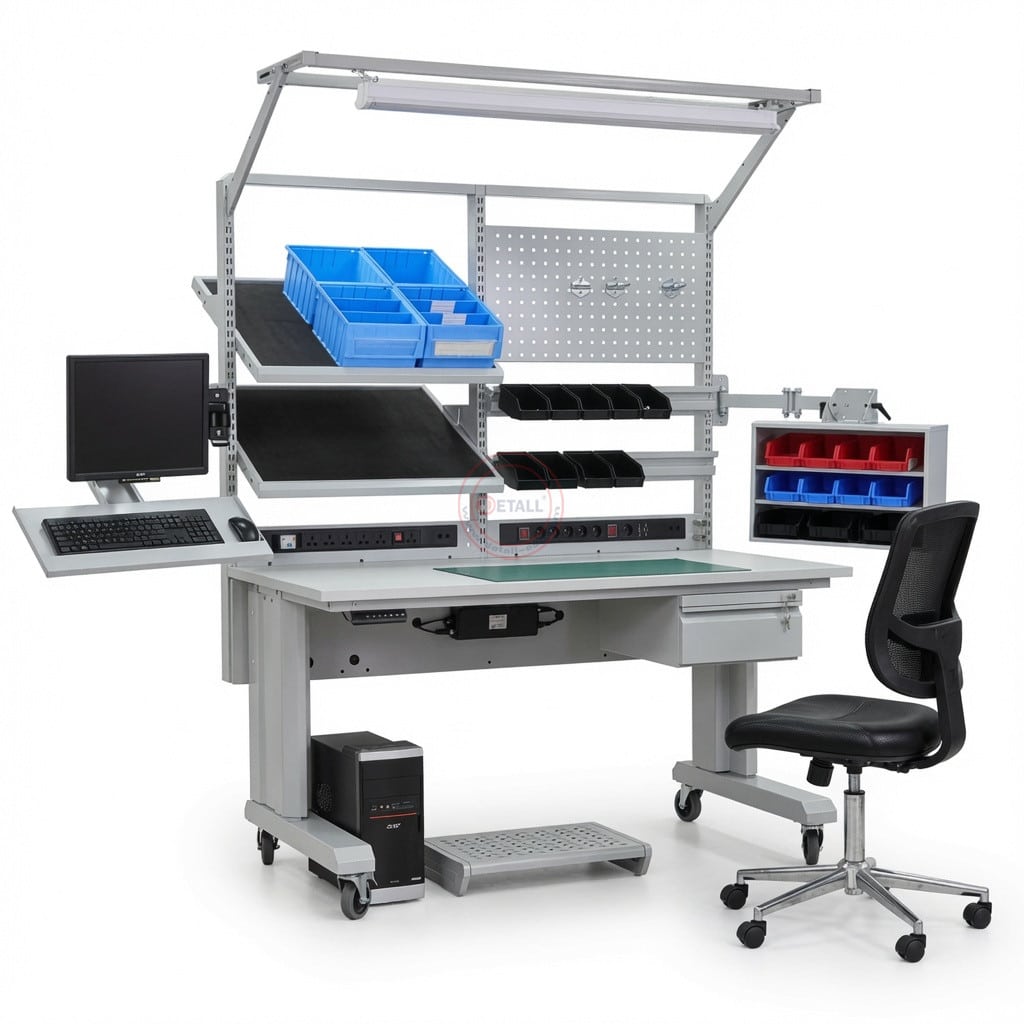

Ergonomic Benefits of ESD Workbenches
ESD compliance and ergonomics are not competing requirements — they are complementary design goals. A workstation that causes operator fatigue or musculoskeletal strain is a workstation that produces errors. Errors in ESD-sensitive assembly mean damage. Proper ergonomic design reduces risk at both levels simultaneously.
Sit-Stand Working: Dynamic Posture for Sustained Performance
Prolonged static posture — whether seated or standing — is a recognized risk factor for musculoskeletal disorders (MSDs). Research consistently shows that sit-stand alternation reduces lower back load, improves circulation, and maintains operator focus during repetitive assembly tasks.
The optimal posture-based workbench heights are:
Posture | Recommended Surface Height |
|---|---|
Seated (light assembly) | 680–720mm |
Seated (precision work) | 720–760mm |
Standing (light assembly) | 900–960mm |
Standing (precision work) | 960–1020mm |
No single fixed height satisfies all of these ranges. Electric height-adjustable ESD workbenches with memory presets allow each operator to program their personal sit and stand heights — transitioning posture mid-shift in seconds without losing their ESD ground connection.
Measurable outcomes:- 50–70% reduction in MSD risk — dynamic sit-stand posture vs. fixed standing reduces cumulative lumbar load
- 15–30% productivity improvement — ergonomic comfort reduces fatigue-related attention degradation over a shift
- Reduced sick leave related to back, neck, and shoulder strain in production environments
Monitor Positioning
Incorrect monitor height is one of the most common sources of neck strain in electronics assembly environments. The monitor should be positioned so the top of the screen is at or slightly below eye level, with the viewing distance set to 50–70cm from the operator’s face.
The Detall articulated monitor arm provides:
- Vertical adjustment to match the operator’s eye level at any bench height
- Tilt and swivel to eliminate screen glare from task lighting
- Spring-loaded positioning that stays in place without re-tightening
- Full ESD grounding via the metal arm structure
When the bench height changes — from sitting to standing — the monitor arm repositions independently, maintaining correct viewing height throughout the posture transition.

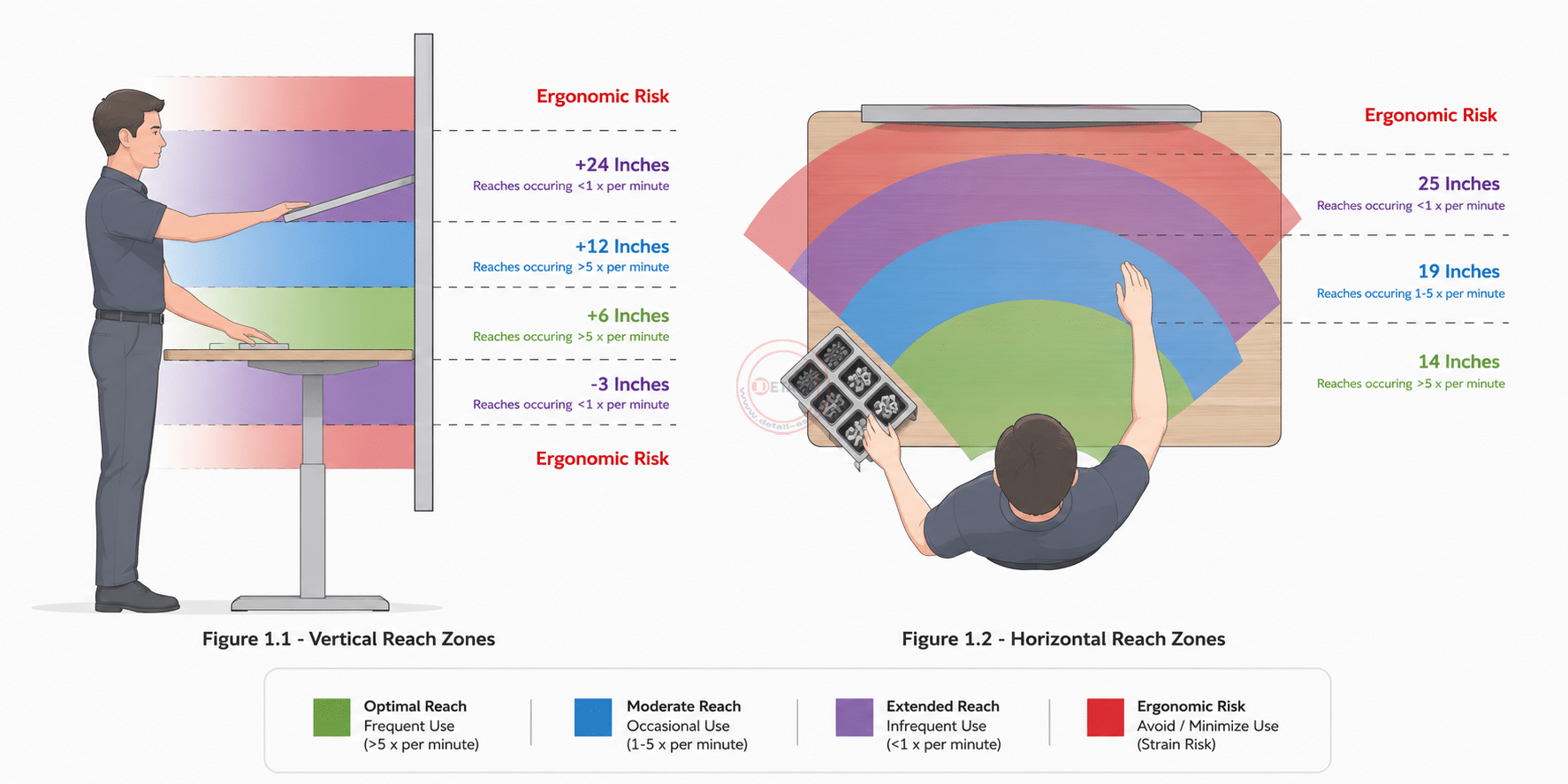

Primary and Secondary Reach Zones
Effective workstation layout places the most frequently used tools and components within the **primary reach zone** — approximately 30–40cm from the operator’s body, within a comfortable arc of motion. Items outside this zone require shoulder rotation or torso lean, increasing fatigue over a shift.
Zone | Distance from Operator | Recommended Content |
|---|---|---|
Primary reach | 0–40cm | Work piece, primary tools, component trays |
Secondary reach | 40–60cm | Reference materials, secondary tools, monitor |
Beyond reach | >60cm | Archive storage, infrequent access items |
Detall overhead shelves, perforated back panels, and monitor arms are all dimensioned to place their content within the secondary reach zone when mounted at standard upright heights — keeping the work surface clear for the primary task.
Workstation Lighting
Inadequate task lighting is a productivity and quality risk in electronics assembly. Fine soldering, component inspection, and quality checks all require shadow-free, high-CRI illumination at the work surface.
The Detall LED task light delivers:
- 5000K color temperature — cool white, optimal for fine detail discrimination
- High CRI (>90) — accurate color rendering for component identification and inspection
- Adjustable arm — positions the light source to eliminate tool and hand shadows
- Anti-glare diffuser — reduces eye fatigue over extended shifts
- Grounded mounting — no insulative surface introduced into the EPA
Regulatory Compliance
- ISO 6385 — Ergonomics principles in the design of work systems: surface height, reach zone, and visual environment requirements
- OSHA General Duty Clause — Employer obligation to address recognized ergonomic hazards in assembly environments
- EU Machinery Directive — Workstation design requirements for CE-marked equipment in European facilities
Frequently Asked Questions
What Is an ESD Workstation?
Why Is ESD Control Important in Electronics Manufacturing?
Can ESD Damage Be Invisible?
What Resistance Should an ESD Workbench Surface Have?
What Is the Difference Between an ESD Workbench and a Standard Industrial Workbench?
What Is a Common Point Ground (CPG)?
Can I Build a Complete EPA with Only an ESD Workbench?
What Is the Difference Between IEC 61340-5-1 and ANSI/ESD S20.20?
What Accessories Are Required for IEC 61340-5-1 EPA Compliance?
How Often Should ESD Mats Be Tested?
How Do I Clean an ESD Workbench Without Damaging Its Properties?
Can I Customize the Bench Dimensions?
Do You Supply to Customers Outside China?
Does Detall Offer OEM Manufacturing?
What Is the Lead Time for Standard Configurations?
Related Resources
- [ESD Control Program Setup Guide] — Step-by-step guide to implementing a compliant EPA from floor to workbench to operator grounding
- [IEC 61340-5-1 Compliance Checklist] — Printable audit checklist for workbench verification, wrist strap testing, and EPA inspection
- [ESD Workbench vs. Standard Workbench: Full Comparison] — Technical comparison including grounding architecture, compliance capability, and total cost analysis
- [How to Test Your ESD Workbench Surface] — — Illustrated guide to surface resistance measurement using the IEC 61340-5-1 standardized 5lb electrode method
- [ESD Flooring Systems] — Complete guide to dissipative and conductive flooring for EPA environments
- [ESD Storage Solutions]— Cabinets, shelving, and component storage for ESD-sensitive device handling
- [ESD Packaging Guide] — Selecting, using, and verifying ESD packaging materials for component storage and shipment
- [How to Set Up a Multi-Station EPA Production Cell] — Ground bus bar configuration, station layout, and audit documentation for production-line EPA setups
