You have invested in ESD workbenches, wrist straps, and proper packaging. Your workbench surface resistance is verified. Your documentation is in order. And then an auditor points at the floor and asks for your Rtg readings. For many facilities, the floor is the weakest link in the ESD control chain — selected without specification, installed without verification, and maintained without any awareness that it has ESD requirements at all. This guide covers everything you need to know about ESD flooring: how it works, what types exist, how to choose the right one, and how to maintain it properly within your overall EPA system.

Quick Answer: ESD flooring provides a controlled resistance path from personnel (via footwear) to earth ground, preventing charge buildup on people walking through EPA zones. The combined system resistance (footwear + floor) must be < 3.5 × 10⁷ Ω per IEC 61340-5-1. Main flooring types include rubber ESD mats, ESD vinyl/PVC tile, ESD epoxy coatings, and ESD carpet tiles — each with different performance characteristics and installation requirements.

Why the Floor Matters in ESD Control

In seated workbench environments where all operators use wrist straps, the floor may seem secondary. But consider what happens when:

• An operator stands up, walks to a component shelf, picks up a part, and returns to the bench
• A technician wheels a cart loaded with PCBs across the factory floor to a test station
• A supervisor walks through the EPA to review production — without a wrist strap

In all three cases, the floor is the only thing standing between the person and charge accumulation. Without an ESD floor (and appropriate ESD footwear), every step across a standard vinyl or concrete floor can generate 1,000–10,000 volts on the human body through triboelectric charging. That charge discharges when the person touches an ESD sensitive device.

ESD flooring, combined with ESD footwear, creates a continuous ground path from the person's feet to earth — exactly the same function as a wrist strap does for a seated operator.

The Two-Component System

ESD floor performance is always evaluated as a system: floor + footwear. Neither component works alone.

• ESD floor alone, with standard shoes: the floor cannot drain charge through the shoe's insulating sole
• Standard floor, with ESD footwear: the footwear has a grounded heel or sole, but there is no conductive path through the floor to earth

Both components must be present and tested together. IEC 61340-5-1 specifies testing the combined system resistance: person wearing ESD footwear, standing on the floor, measured to ground. The required result is < 3.5 × 10⁷ Ω.

Types of ESD Flooring: Complete Comparison

Type 1: ESD Rubber Mats (Anti-Static Floor Mats)

What they are: Rubber or vinyl mats placed on top of existing flooring, typically 2–4mm thick, with a conductive bottom layer and a dissipative top surface.

How they work: The top surface dissipates charge from footwear; the conductive bottom layer connects to a grounding snap that attaches to a ground cable.

Advantages:

• Lowest upfront cost
• No installation required — place and ground
• Replaceable without facility modification
• Easy to reposition when floor layout changes
• Available in custom lengths and widths

Disadvantages:

• Edges curl over time, creating trip hazards
• Seams between mats create potential gaps in ESD coverage
• Must be cleaned carefully — wrong cleaning products damage ESD properties
• Regular resistance testing required (mats degrade faster than hard flooring)
• Not suitable for heavy vehicle (forklift) traffic

Best for: Individual workstations, small EPAs, retrofit installations where hard flooring modification is not feasible, temporary EPA setups.

IEC resistance range: Typical top surface resistance: 10⁶ to 10⁸ Ω. Verify with supplier datasheet.

Type 2: ESD Vinyl / PVC Tile and Sheet Flooring

What they are: Hard flooring tiles (300mm × 300mm typical) or sheet goods made from ESD-formulated PVC compounds. Permanently installed over the subfloor with conductive adhesive or conductive grid tape.

How they work: Conductive carbon black or metallic additives in the PVC compound create a dissipative path through the tile. Conductive adhesive or buried copper tape grid provides the ground connection path to a floor ground point.

Advantages:

• Seamless appearance when installed correctly
• Higher durability than mats — resists wear from foot traffic and light wheeled equipment
• More uniform coverage than mat-based systems
• Easier to clean than rubber mats
• Available in various colors (often gray or charcoal for clean-room aesthetics)

Disadvantages:

• Higher installation cost than mats
• Requires subfloor preparation (smooth, dry, level)
• Conductive adhesive must be applied uniformly — gaps reduce performance
• Ground grid must be installed before tiles and connected to facility ground
• Damaged tiles must be replaced, not patched

Best for: Permanent EPAs in electronics manufacturing, semiconductor facilities, medical device manufacturing. The most common choice for new-build or major renovation ESD flooring projects.

IEC resistance range: Dissipative: 10⁶ to 10⁹ Ω. Verify tile-specific datasheet — products vary significantly.

Type 3: ESD Epoxy Coating

What it is: A two-component epoxy floor coating system applied to concrete or other hard substrates, formulated with conductive additives to achieve dissipative surface resistance values.

How it works: The coating bonds to the substrate and creates a continuous, seamless ESD surface. Ground connections are embedded in the substrate or surface before coating application.

Advantages:

• Seamless — no joints, tiles, or seams that can separate or accumulate contamination
• Excellent chemical resistance (important in labs and soldering areas)
• Can withstand forklift and heavy equipment traffic when properly specified
• Long service life (10–15 years with maintenance)
• Suitable for large-area EPA installations (entire factory floor)

Disadvantages:

• Highest installation cost and most complex application process
• Requires professional installation — surface preparation, primer, base coat, top coat sequence
• Difficult and expensive to repair if damaged
• Application time requires facility downtime
• Surface resistance can drift over time with heavy traffic or chemical exposure

Best for: Large EPAs in high-volume EMS factories, semiconductor back-end facilities, or any facility where fork trucks operate within EPA zones. Also favored in clean rooms where contamination from tile joints is unacceptable.

IEC resistance range: Target dissipative: 10⁶ to 10⁹ Ω for ESD work areas.

Type 4: ESD Carpet Tile

What it is: Modular carpet tiles (typically 500mm × 500mm) manufactured with conductive fiber blends or conductive backing. Rarely used in production environments but common in ESD-sensitive office, lab, and R&D settings.

How it works: Conductive fibers in the carpet pile or a conductive backing layer dissipates charge from footwear to ground via the carpet-to-subfloor path.

Advantages:

• More comfortable underfoot for standing operators
• Acoustic damping (reduces noise in lab environments)
• Standard office aesthetic — suitable for ESD-sensitive R&D environments

Disadvantages:

• Higher maintenance requirements (vacuuming, contamination control)
• Not suitable for liquid splash areas or heavy mechanical work
• Harder to verify resistance consistently
• Not appropriate for cleanroom environments

Best for: ESD-sensitive R&D labs, engineering offices, testing environments where technicians stand for extended periods and comfort is prioritized.

Selecting the Right ESD Flooring for Your Facility

Use this decision framework:

Additional factors:

• Traffic type: Forklifts and pallet jacks require epoxy or heavy-duty tile. Foot traffic and light carts are fine with vinyl tile or mats.
• Chemical exposure: Labs with flux, solvents, or cleaning agents need chemically resistant options (epoxy or physical board-top mats).
• Cleanability: Seamless surfaces (epoxy) are easiest to clean and less likely to harbor contamination.
• Flexibility: If your EPA layout may change, mats are more adaptable than permanently installed flooring.
• Budget: Mats are cheapest upfront; epoxy is highest upfront but lowest maintenance cost over time.

How ESD Flooring Integrates with Your Grounding System

ESD flooring is not self-contained — it must connect to the facility's Common Point Ground system to be effective.

Grounding Methods by Flooring Type

Rubber mats: A grounding snap on the mat surface connects to a grounding cable, which runs to the EPA's CPG or to a wall-mounted ground outlet.

Vinyl tile: Copper tape strips or conductive adhesive patterns installed in a grid pattern under the tiles connect to a ground point. The grid spacing (typically 600mm × 600mm) ensures that any tile's resistance path to ground is short.

Epoxy coating: Ground connections are embedded at intervals in the substrate before coating, with pigtail connections brought to the surface and connected to the ground system after curing.

Ground Point Density

For large EPAs, a single ground point is insufficient. Current standards and good practice suggest:

• Ground connection every 10–15 meters for mat and tile systems
• For epoxy: one embedded ground stub per 25–50 m² of floor area

Document the location of all floor ground connections on the EPA floor plan drawing.

Installation Best Practices

For all flooring types:

• Test subfloor resistance before installation — a conductive subfloor (rebar-reinforced concrete, for example) can affect the final system resistance
• Measure and record ambient conditions during installation (temperature and humidity affect curing for epoxy, adhesion for tile)
• Allow 24–48 hours cure time before measuring final resistance values and before placing equipment

For rubber mats:

• Clean the floor surface before placement to ensure mat lies flat
• Snap grounding cables before use — an unconnected mat is worse than no mat, because it creates an isolated conductive island that can accumulate and transfer charge
• Never fold or stack mats — this can crack the conductive layer

For vinyl tile:

• Apply conductive adhesive in full coverage, with no voids — voids create areas without ground path
• Stagger tile joints like brick pattern for mechanical strength
• Roll the installed surface with a weighted roller to ensure full adhesion

For epoxy:

• Surface preparation is 90% of the job — grind, shot-blast, or acid-etch concrete to ensure mechanical bonding
• Prime, base coat, and top coat must all be from a matched ESD system — mixing brands or product lines can result in incompatible resistance values
• Hire a flooring contractor with documented ESD epoxy installation experience

Maintenance and Periodic Testing

Testing Schedule

Cleaning Guidelines

Do: Use ESD-floor-approved cleaners. Most manufacturers supply or recommend specific products. Rinse thoroughly — residue from cleaning products can alter surface resistance.

Do not: Use silicone-based polish, wax, or standard floor cleaning products. These create an insulating film that can push resistance values above specification within a single cleaning cycle.

Do not: Use steam cleaning on rubber mats — heat causes delamination of the conductive backing.

Common Maintenance Failures

• Applying a commercial floor wax over ESD vinyl tile after general facility cleaning — renders the floor non-compliant until stripped and retested
• Letting rubber mat grounding snaps corrode — the snap may look connected but has no electrical continuity
• Using replacement tiles from a different product line when individual tiles are damaged — resistance values may not match the installed system

The workbench is where ESD sensitive devices are handled, but the floor is what protects them in transit between stations. Detall designs ESD workbenches with integrated grounding systems that work seamlessly with any compliant ESD flooring installation — the common ground point connects both, creating a unified EPA that IEC 61340-5-1 requires. If you are specifying or upgrading an EPA, consider the floor and the bench as part of the same system — because that is exactly what they are.

For modular ESD workbench systems that integrate with your EPA grounding infrastructure, visit www.detall-esd.com.

ESD flooring is not glamorous, but it is foundational. Get it right, test it, maintain it, and it will protect your production silently for years. Ignore it, and you will be diagnosing field failures and wondering why your wrist strap compliance is perfect but your product quality is not.

Electronics leave the protection of a properly designed EPA every time they are shipped — and in that moment, the only thing standing between a sensitive component and electrostatic damage is its packaging. Yet ESD packaging is probably the most misunderstood aspect of ESD control in most electronics facilities. Pink bags and silver bags look similar. "Anti-static" and "shielding" get used interchangeably. Packaging done outside the EPA without thought about the operator's charge level. These are not minor oversights — they are compliance gaps that render the rest of your ESD control program incomplete. This guide covers every material type, how they work, how to choose the right one, and how to execute the packaging process correctly.

Quick Answer: ESD packaging protects sensitive components from electrostatic damage during transit and storage outside a controlled EPA. The correct material depends on the component's sensitivity level: metalized shielding bags (Faraday cage) for Class 1 and Class 2 ESDS; anti-static (pink poly) bags for lower-risk or secondary packaging. Packaging must always be performed inside the EPA, on an ESD-safe surface, by grounded personnel.

Why ESD Packaging Is the Last Critical Control Point

Think of ESD control as a chain of protection. The chain starts when a sensitive component enters your facility and ends when the packaged product leaves. At every step inside the facility, you have control: ESD workbenches, grounded personnel, EPA boundaries, ESD storage systems.

The moment a component or assembly leaves the EPA — whether for shipment to a customer, transit to a contract assembler, or storage in an off-EPA warehouse — all of that in-facility control is gone. What remains is only the packaging.

If the packaging fails (wrong material, improper sealing, no ESD labeling), the component is unprotected from:

• Triboelectric charge generated during shipment vibration
• Electrostatic fields from surrounding materials in a shipping box
• Handling by personnel without ESD awareness at the receiving end

ESD packaging is not just a courtesy — for any component sensitive to Class 1 or Class 2 ESD (Human Body Model ≥ 100V, ≥ 200V respectively), it is a compliance requirement under IEC 61340-5-1 and ANSI/ESD S20.20, and increasingly a specific requirement in customer specifications and quality agreements.

The ESD Sensitivity Classification System

Before selecting packaging, you need to know what you are packaging. ESD sensitivity is classified by the Human Body Model (HBM) withstand voltage:

Classes 0, 1, and 2 are typically defined as ESD Sensitive Devices (ESDS) requiring full ESD control program coverage and appropriate packaging. Class 3 and 3B devices can often be handled with more relaxed protocols, but always verify with component datasheets.

ESD Packaging Material Types: Explained

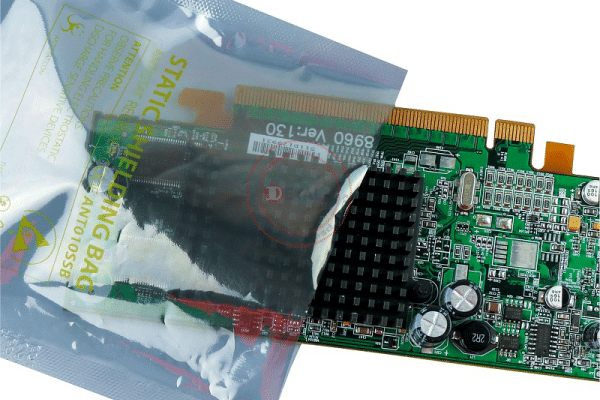

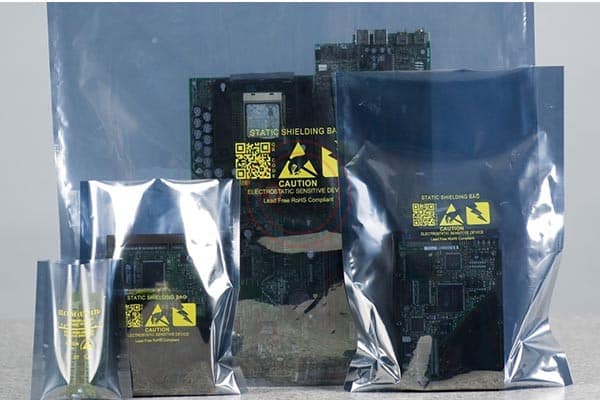

Type 1: Metalized Shielding Bags

Also called: Metal-in bags, static shielding bags, silver bags, ESD shielding bags

Construction: Multi-layer laminate:

• Outer layer: Metalized polyester (PET) film — creates the Faraday cage
• Barrier layer: Insulating polyethylene
• Inner layer: Anti-static (dissipative) polyethylene — prevents charge buildup inside the bag

How they protect:
The metallic outer layer acts as a Faraday cage. Electrostatic fields from outside the bag are reflected or absorbed by the metallic layer and cannot reach the component inside. Even if someone handling the closed bag builds up 10,000 volts of body charge, the field does not penetrate to the contents.

Testing standard: ANSI/ESD STM11.31 — shield effectiveness measured as energy through the shield after a controlled ESD pulse. Requirement: < 50 nJ.

When to use:

• Any ESDS (Class 0, 1, 2) being stored or shipped outside the EPA
• End-of-line packaging before shipment to customers
• Overnight storage of partially assembled boards or loose components when the EPA cannot be maintained as a fully secured environment
• Returns, repairs, and any component that will leave your facility

Critical requirement: The bag must be sealed. An open or only loosely folded shielding bag provides no Faraday shielding. Seal using heat sealer, fold-and-tape (ESD tape), or resealable zip-lock shielding bags. Verify the closure type meets your ECP requirements.

Limitations:

• Single use in most applications (puncturing or tearing the metallic layer compromises shielding)
• Slightly more expensive than pink poly bags
• Heavier than standard poly bags — consider when optimizing shipment weight

Type 2: Anti-Static Pink Poly Bags

Also called: Pink poly bags, anti-static bags, PE bags

Construction: Polyethylene film with anti-static additive compounds (amines or anti-stat agents) incorporated into the material.

How they protect:
Anti-static bags reduce triboelectric charge generation — they do not accumulate charge the way standard plastic does, and they dissipate surface charge slowly. This prevents the bag itself from becoming a charged surface that can discharge to components.

Critical limitation: No shielding capability. Pink poly bags have a surface resistance in the anti-static range (10⁹ to 10¹¹ Ω typically) but zero Faraday shielding. External electrostatic fields pass through them unimpeded. An ESDS in a pink poly bag inside a non-ESD box, handled by an ungrounded person, has no protection from that person's charge.

When to use:

• Internal EPA packaging (moving components between workstations within the EPA)
• Secondary packaging (pink poly inner bag, shielding outer bag)
• Very low sensitivity Class 3 and above components that require some anti-static measure but do not need Faraday shielding
• Protecting non-critical assemblies from tribocharge during internal transport

When NOT to use:

• As the sole packaging for Class 0, 1, or 2 ESDS leaving the EPA
• As a substitute for shielding bags in customer-facing packaging
• For long-term storage outside a controlled environment

The confusion between pink poly and silver shielding bags is one of the most common ESD packaging errors. Remember: anti-static = tribocharge control only; shielding = Faraday cage protection. For ESDS leaving the EPA, you need shielding.

Type 3: Conductive Foam and Anti-Static Foam

Conductive foam (black):

• Surface resistance: < 10³ Ω
• Function: Drains charge from component leads on contact
• Use: Through-hole components, leaded ICs, connector pins
• Critical note: Conductive foam can itself store charge and release it as a slow discharge. It is a contact protection material, not a shielding material.

Anti-static (dissipative) foam (pink or gray):

• Surface resistance: 10⁶ to 10⁹ Ω
• Function: Controlled charge dissipation, cushioning
• Use: PCB support trays, component separators, shipping inserts within shielding bags

What not to use: White polystyrene foam. It is among the worst possible materials for ESD packaging — extremely high resistance, strong triboelectric properties, and ubiquitously available, which is why it keeps appearing in ESD facilities. White foam generates charge on contact with virtually any surface. Never use it with ESDS.

Type 4: ESD Labels and Identification

Labeling serves two functions: identification (this package contains ESD sensitive devices) and compliance (demonstrating correct packaging to customers and auditors).

Required marking per IEC 61340-5-1:

• ESD protective symbol (hand-with-bolt, with arc) on outer packaging
• May also carry the sensitivity symbol (hand-with-bolt, without arc, with international "no" symbol) to indicate items require ESD protection handling by the recipient

Additional label elements:

• Part number and quantity
• Date of packaging (traceability)
• Supplier/facility identifier
• Any special handling instructions ("Handle in EPA only," "Do not open outside EPA")

ESD labels should be made from ESD-safe label material (dissipative or on top of a dissipative liner) — standard paper labels with aggressive adhesive can generate charge on application.

Type 5: ESD Moisture Barrier Bags and Vacuum Bags

For moisture-sensitive components (MSL-rated devices) that are also ESD sensitive, packaging must address both risks simultaneously.

Moisture barrier bags (MBB): Multi-layer construction adding a moisture vapor barrier layer to the shielding construction. Typically sealed with desiccant and humidity indicator card inside.

When required: Moisture Sensitivity Level (MSL) 2 through 6 devices per IPC/JEDEC J-STD-033. Check component datasheet for MSL rating.

Important: Regular shielding bags are not moisture barriers. Using a standard silver shielding bag for an MSL-rated device and calling it complete packaging is incorrect. Verify bag specification against both ESD and moisture barrier requirements.

The ESD Packaging Process: Step by Step

Even the right materials fail if the packaging process is wrong. Follow this procedure for compliant packaging.

Step 1: Package Inside the EPA

Packaging must be performed inside a defined EPA, at an ESD-safe workbench or surface. The moment an unpackaged ESDS moves outside the EPA boundary, it is unprotected. Do not move the component to a shipping area and package it there.

Step 2: Operator Preparation

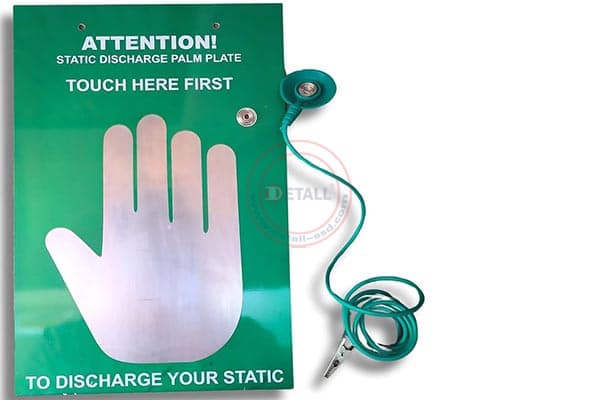

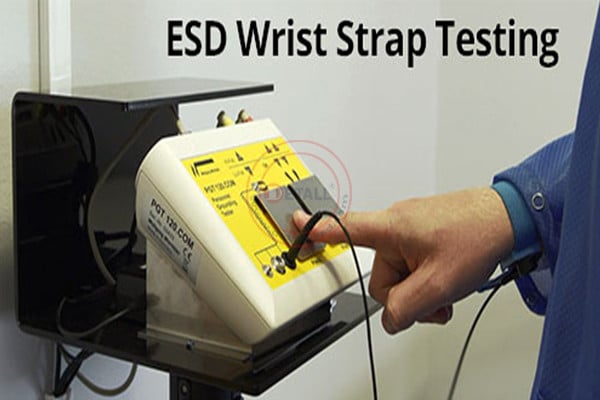

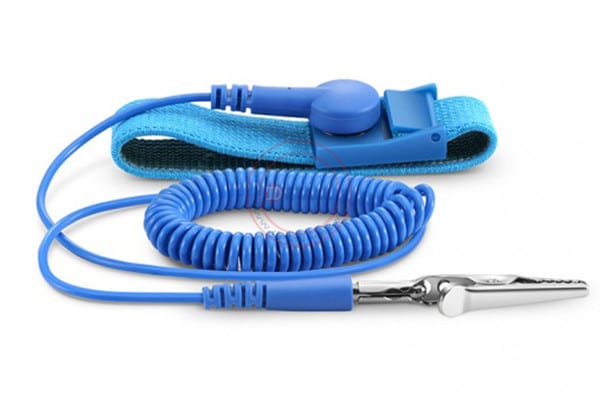

• Wrist strap must be worn and tested before packaging operations begin
• Wrist strap must be connected to the CPG (not just to the bench surface)
• ESD-safe tools and tapes only

Step 3: Inspect the Packaging Material

• Check shielding bags for punctures, tears, or compromised metallic layer (shiny areas that have flaked or scratched through)
• Verify bag size is appropriate — bags should not be more than 25–30% larger than the component to minimize internal movement
• Check that the bag material matches the required specification for the component sensitivity level

Step 4: Insert the Component

• Place component directly into the bag — do not let the component contact the outer metallic layer (it should only touch the inner dissipative layer)
• For PCBs: orient board so component side faces inward, away from bag walls where possible
• For leaded components: use foam insert to separate leads if necessary

Step 5: Seal the Bag

• Heat sealing: Best option for single-use applications. Creates an airtight, contamination-resistant seal. Verify sealer jaw temperature is appropriate for the bag material.
• Fold and ESD tape: Fold the open end of the bag three or four times and secure with ESD-safe tape (not standard tape, which is an insulator)
• Zip-lock shielding bags: Confirm the zip closure is fully engaged across the entire width

For moisture barrier bags: seal immediately after inserting component, desiccant, and humidity indicator card. Use a heat sealer — zip-lock closure is not typically adequate for MBB.

Step 6: Label the Package

Apply ESD awareness label to the outer surface. Add part number, quantity, date, and any required traceability information.

Step 7: Outer Packaging

Place sealed ESD bags into outer shipping cartons lined with dissipative material (not polystyrene). If multiple bags are packed together, use dissipative separator sheets between them.

IEC 61340-5-1 and ANSI/ESD S20.20 Packaging Requirements

Both standards address packaging as part of the overall ESD Control Program:

Key requirements:

• ESD packaging must be used for ESDS leaving the EPA
• Packaging materials must be tested and qualified (supplier test data or in-house testing)
• Packaging process must be covered in the ECP document
• Personnel performing packaging must be trained and covered by ECP procedures

Supplier qualification: Your ESD packaging supplier should provide test data (shielding effectiveness, surface resistance) for each material type. Request this data when qualifying a new packaging supplier and retain it as part of your compliance records.

Common ESD Packaging Mistakes

Using pink poly as shielding. The most common error. These bags look similar and cost less. They are not substitutes for each other when shielding is required.

Packaging outside the EPA. Components packed in a shipping area, office, or non-EPA zone are exposed to uncontrolled charge during the packaging process — even if the final package is a shielding bag.

Leaving bags open. An open shielding bag is not a Faraday cage. If you need to access a component frequently, use a resealable zip-lock shielding bag and fully close it between uses.

Using standard tape to seal shielding bags. Standard adhesive tape is an insulator. It generates tribocharge when peeled. Use ESD-safe tape (typically dissipative film with low-charge adhesive).

White foam void fill. Using white polystyrene chips or blocks as void fill inside a box containing shielded ESDS. The foam generates charge that can exceed the shielding bag's capability in extreme cases.

No humidity indicator for MSL parts. Shipping an MSL-rated component in a standard shielding bag without desiccant and humidity indicator card leads to moisture exposure and moisture-induced failures on reflow.

Detall ESD workbenches are designed as the platform where proper ESD packaging should occur — at an ESD-safe surface, with grounding connections for operator wrist straps, with integrated storage for packaging materials and sealed bag inventory. Keeping the packaging station within the EPA is not a minor procedural point — it is the difference between a complete ESD control program and one with a critical gap at the final step.

For ESD workbench configurations designed for packaging and inspection operations, visit www.detall-esd.com.

ESD packaging done right costs almost nothing extra compared to standard packaging. ESD packaging done wrong — or not done at all — costs you in field failures, customer returns, and the credibility that takes years to build. Get the materials right, get the process right, and protect your work all the way to the customer's bench.

The workbench is where most ESD control attention goes — the surface resistance, the grounding, the wrist strap compliance. But consider what happens to ESD sensitive components during the hours they are not being worked on. They are sitting in bins on open shelves, loaded into transport carts, waiting in incoming inspection, or queuing in WIP storage. In many facilities, components spend more time in storage than at the workbench — and in many of those same facilities, ESD storage gets a fraction of the attention ESD workbenches do. This guide covers the full range of ESD storage solutions: what to use, how to choose, and how to integrate storage systems with your workbench EPA so you never have an unprotected gap.

Quick Answer: ESD sensitive devices must be stored in dissipative or shielding containers at all times when outside active ESD workbenches within a defined EPA. Options include anti-static shelving, ESD totes and bins, component trays, shielding bags, and ESD-foam-lined drawers. The right solution depends on component sensitivity level, handling frequency, storage duration, and integration with your production workflow.

The Storage Risk: Why This Gets Overlooked

ESD damage during storage seems counterintuitive. "Nothing is touching the component," the logic goes. "How can it be damaged?"

Three mechanisms:

1. Field-induced damage. A charged insulating surface (standard plastic bin, polystyrene tray, non-ESD shelf liner) creates an electrostatic field. When a sensitive component sits near that field, charge is induced on the component's leads and internal junctions. If the charge differential exceeds the component's withstand voltage, damage occurs — without physical contact.

2. Contact discharge. Every time a component is placed into or removed from a storage container, there is a contact event. If the container is not dissipative and grounded, the contact can create or transfer charge.

3. Transport-induced charging. Carts, conveyors, and pneumatic tube systems used to move components between storage and production can generate significant charge through vibration and friction if the contact surfaces are not ESD-safe.

The challenge is that all three mechanisms are invisible and produce no audible or physical indication. The only defense is using proper ESD storage materials consistently.

Understanding the ESD Storage Material Hierarchy

Not all ESD storage materials are equal. They fall into three categories, with different protection levels:

Category 1: Conductive Materials

• Surface resistance: < 10³ Ω
• Color: typically black (carbon-loaded)
• Examples: carbon-loaded polyethylene bins, black conductive foam, metal containers
• Protection level: Fastest charge dissipation. Can be used as one electrode of a Faraday enclosure when combined with a conductive lid.
• Caution: Too-fast discharge can itself damage some ultra-sensitive components. Check component withstand voltages before using conductive contact materials.

Category 2: Dissipative Materials

• Surface resistance: 10⁴ to 10¹¹ Ω
• Color: typically gray or pink-tinted
• Examples: pink poly storage bins, gray dissipative totes, ESD foam with dissipative outer layer
• Protection level: Controlled, safe discharge rate — the preferred contact material for most electronics production
• Best for: Component bins, work-in-process totes, shelf liners, workbench drawers

Category 3: Shielding Materials (Metalized)

• Structure: metallic outer layer over dissipative inner layer
• Examples: metalized shielding bags, ESD shielding boxes
• Protection level: Creates a Faraday cage — no external electrostatic fields penetrate to the component
• Best for: Long-term storage, external shipping, storage outside the EPA boundary
• Required for: Components that cannot remain in a controlled EPA environment

Standard "pink poly" bags are anti-static (dissipative) but not shielding. They reduce tribocharging but do not block external fields. For unpackaged sensitive devices stored outside an EPA, shielding bags are the correct specification.

ESD Storage Solution Types: In Detail

1. Anti-Static Shelving

ESD-compliant shelving uses the same principle as ESD workbench frames: anti-static powder coating on all metal surfaces, with grounding capability to connect the shelving unit to the EPA's Common Point Ground.

When to use:

• Any shelving unit inside an EPA where unpackaged ESD sensitive devices are stored
• Incoming inspection areas
• WIP storage racks adjacent to production lines

Key specifications:

• Frame coating: permanent anti-static powder coat (same as ESD workbench frame)
• Shelf surfaces: dissipative material or ESD-safe shelf liners (not bare metal, which can be too conductive)
• Grounding: ground lug on each shelving unit, connected to CPG

Common mistake: Using standard metal shelving (with insulating standard powder coat) inside an EPA because it "looks the same." Visually indistinguishable from ESD shelving, but electrically non-compliant. Always verify with resistance testing.

Modular tip: ESD workbench systems with integrated upright shelving — like modular industrial workbench platforms — provide anti-static shelving directly above the workbench surface, with a shared grounding connection. This eliminates the need for separate shelving units in many workstation configurations.

2. ESD Totes and Bins

ESD totes are the most commonly used WIP container in electronics manufacturing. They move components between storage, production, and inspection, and are used to present parts at the workbench.

Material options:

What to avoid:

• Clear or white polyethylene bins — these are standard plastic, not ESD-rated
• Cardboard boxes or trays without ESD liner — cardboard is mildly conductive when humid, but not reliably so, and creates contamination
• Mixing ESD and non-ESD bins in the same storage area without clear labeling

Labeling: Every ESD-rated tote should bear an ESD awareness symbol (hand-with-bolt or IEC 61340-5-1 logo). Non-ESD totes must be kept separate and clearly differentiated.

3. Component Trays and Tubes

For packaged ICs, BGAs, and leaded components, the original manufacturer's packaging is usually already ESD-compliant. The question is what happens when components are removed from original packaging and placed into production WIP trays.

Matrix trays (IC trays):

• Black conductive trays: carrier standard for most IC packages
• Resistance: < 10³ Ω (conductive)
• Must be handled on ESD-safe surfaces; the tray itself provides component-level ESD protection during handling

Tape and reel: Original manufacturer tape is usually pink or black ESD-rated. When components are spliced or transferred to alternate reels, verify the replacement reel carrier tape is ESD-compliant.

Component tubes (DIP ICs, transistors): Black conductive tubes are standard. Verify that any replacement or third-party tubes carry resistance data.

4. ESD Foam

ESD foam is used for cushioning and protecting leads during storage and transport. It comes in two main formulations:

Conductive (black) foam:

• Resistance: < 10³ Ω
• For through-hole and leaded components stored in foam beds
• Components physically contact the foam, and charge is drained through contact

Dissipative (pink/gray) foam:

• Resistance: 10⁶ to 10⁹ Ω
• For packaging inserts, tray liners, and component separators
• Controlled discharge rate — preferred for most direct-contact applications

What not to use: White polystyrene ("styrofoam") or standard polyurethane foam (yellow). Both are insulators with strong triboelectric properties — they actively generate charge on contact.

Common application: ESD foam-lined drawers in ESD workbenches are an excellent solution for storing frequently-used small components directly at the workstation, within the EPA, in a protected manner.

5. ESD Shielding Bags

Metalized shielding bags (also called "ESD bags" colloquially, though this term is also applied to non-shielding pink poly bags) provide the highest level of portable component protection.

Construction: Three-layer laminate:

1. Outer layer: metalized polyester film (Faraday cage)
2. Middle layer: insulating polyethylene
3. Inner layer: dissipative polyethylene

Function: The outer metallic layer reflects external electrostatic fields. Components inside the bag are shielded from environmental charge regardless of the external environment — including outside EPA zones.

Required specifications (IEC 61340-5-1):

• Shielding effectiveness: < 50 nJ (energy through shield after ESD pulse test)
• Inner surface resistance: 10⁴ to 10¹¹ Ω (dissipative, to prevent charge buildup inside the bag)

Use cases:

• All ESD sensitive devices shipped to or from the facility
• Components stored outside a defined EPA
• WIP at end of shift when the EPA cannot be maintained as fully secured overnight
• Components leaving for external test or repair

Handling rule: Shielding bags must be sealed (heat seal or fold-and-tape) to function as a Faraday cage. An open bag provides no shielding.

Integrating Storage Systems with the Workbench EPA

The ideal flow in an ESD-controlled production environment looks like this:

Incoming components (in shielding bags)
    ↓
Incoming inspection station (ESD workbench)
    ↓
ESD storage shelving / WIP area (grounded, inside EPA)
    ↓
ESD workbench (production)
    ↓
Outgoing (into shielding bags, at ESD workbench)

At every step, the component is either inside ESD packaging or on an ESD-safe surface within a grounded EPA. There are no gaps.

Where gaps commonly appear:

• Components removed from incoming bags and placed in standard plastic bins before being issued to production
• WIP storage shelves located just outside the EPA boundary
• End-of-shift staging where partially processed assemblies are left on non-ESD carts overnight
• Rejected components returned to storage in non-ESD packaging

Map your component flow from receiving dock to shipping dock. Every point where a sensitive device leaves ESD packaging should be inside a defined, compliant EPA.

Setting Up an Integrated Workstation Storage System

The most practical approach for workstation-level storage is to integrate ESD storage directly into the workbench system using the modular accessory platform:

Overhead shelving: ESD-compliant shelving mounted on the upright system above the work surface, within arm's reach. Anti-static coating standard, grounded through the shared bench ground point.

Drawers: ESD-foam-lined or dissipative-bottom drawers mounted in the workbench pedestal. Components stay within the EPA, at the workstation, accessible without leaving the grounded environment.

Hanging bins and rail systems: Dissipative component bins mounted on ESD-safe rail systems attached to the upright panel. Ideal for SMT feeders, small hardware, and frequently accessed components.

Wire management and storage: ESD-safe cable organizers and tool holders keep the workbench organized without introducing non-ESD materials near sensitive components.

Detall's modular workbench accessory range includes ESD-compatible storage options that integrate directly into the bench upright system — shelving, drawers, rail bins, and tool storage — all with anti-static specifications. This approach creates a complete workstation EPA without needing separate freestanding storage furniture.

Explore the full configuration options at www.detall-esd.com.

ESD storage is not about having the right product label on a bin. It is about maintaining continuous protection for sensitive components from the moment they enter your facility to the moment they leave. Map the gaps in your current flow, fill them with the right materials, and your ESD control program will be genuinely comprehensive — not just workbench-deep.

Walk through most electronics factories and you will find at least a few standard workbenches mixed in with the ESD-rated ones. Sometimes it is a cost decision, sometimes it is a misunderstanding of what actually matters, and sometimes it is simply habit — "we've always used these." The problem is that in an environment where components worth hundreds of dollars can be silently damaged by a 100-volt discharge, the difference between a proper ESD workbench and a standard one is not trivial. This guide gives you a complete, honest comparison — materials, grounding, compliance, costs, and use cases — so you can make an informed decision rather than an expensive mistake.

Quick Answer: An ESD workbench uses dissipative or conductive surface materials with permanent anti-static coating on all metal parts and integrates into a grounded EPA system. A standard workbench has no electrostatic control properties and can generate, accumulate, and transfer damaging charges to sensitive components. For any facility handling ESD sensitive devices, standard workbenches are non-compliant with IEC 61340-5-1 and ANSI/ESD S20.20.

The Core Difference: How Each Bench Interacts with Charge

To understand why these two types of benches are fundamentally different, you need to understand what happens to electrostatic charge on each surface.

Standard workbench behavior:

• Powder-coated metal frame: standard powder coatings are insulators — they prevent charge from dissipating and can build up thousands of volts of surface charge
• Laminate or wood tabletop: similarly insulating, capable of holding static charge for minutes or hours
• No ground connection: even if the bench frame is metallic, it is electrically floating — it can accumulate charge and release it as a spark discharge

ESD workbench behavior:

• Frame: coated with anti-static powder coating that has a controlled surface resistance, allowing charge to dissipate slowly and safely rather than accumulate
• Tabletop: made from ESD-rated HPL laminate or anti-static physical board, maintaining dissipative resistance values across the surface
• Ground connection: integrated grounding points connect the surface (and the operator via wrist strap) to the Common Point Ground system, providing a controlled, safe path for charge to flow to earth

The physics is straightforward: charge cannot damage a component if it dissipates safely before it reaches the component. An ESD workbench makes that happen. A standard workbench does not.

Material and Surface Comparison

Tabletop Materials

ESD HPL laminate is the most common ESD tabletop for electronics work. It is wear-resistant, heat-tolerant, and cleanable with standard cleaning agents. Its anti-static properties are built into the material during manufacturing — they do not wash off or wear away under normal use.

Anti-static physical board (sometimes called ESD phenolic board) offers higher chemical resistance, making it suitable for rework stations where flux, solvents, or other chemicals are used. It is harder and denser than HPL.

Frame and Structure Materials

This is a critical point that many buyers miss: standard powder coat is an insulator. It looks identical to anti-static powder coat. The difference is in the coating formulation — anti-static coatings include conductive additives that create a controlled resistance path through the coating layer. Without this, the frame of a standard workbench is electrically isolated, even though it is metal.

Grounding Capability

This is where the practical gap between the two bench types is most clearly visible.

Standard workbench:

• No grounding provision
• Frame may be metallic but is electrically isolated from any ground reference by the insulating coating
• Cannot be safely added to a Common Point Ground system without modification
• Operator cannot be grounded through the bench

ESD workbench:

• Dedicated grounding lug(s) on the frame, typically at the rear
• Surface connects through the grounding system to the Common Point Ground
• Wrist strap outlet provides a grounding point for the operator at each work position
• Resistance to ground is tested, documented, and verifiable

From an IEC 61340-5-1 perspective, a workbench that cannot be integrated into a verified grounding system cannot be used in an EPA. Full stop.

Compliance: What the Standards Actually Require

IEC 61340-5-1

The standard requires that all surfaces within an EPA meet the following resistance specifications:

• Point-to-point surface resistance: 1 × 10⁴ to 1 × 10¹¹ Ω
• Resistance to ground: < 1 × 10⁹ Ω

A standard workbench with an insulating surface typically measures > 10¹² Ω — above the upper limit for any ESD control surface. It fails the standard by definition.

ANSI/ESD S20.20

The U.S. standard has nearly identical worksurface resistance requirements and the same prohibition on uncontrolled insulating materials within EPAs.

Practical consequences of non-compliance:

• Customer audits will flag the non-conformance
• Field failure rates will be higher than necessary
• Warranty claims and returns will be attributable (at least in part) to inadequate ESD controls
• Insurance claims for ESD-related losses may be challenged

Cost Comparison: The Real Numbers

The price difference between a standard industrial workbench and an ESD-rated equivalent typically ranges from 15% to 35%, depending on configuration and scale. This gap is real and legitimate — anti-static materials and coatings cost more.

The question is whether that premium is worth it. Consider:

The cost of ESD damage

• Catastrophic failure (device fails immediately): Obvious, traceable. Catch rate in production: high.
• Latent damage (device works but is weakened): Invisible during production testing. Fails in the field after weeks or months. Catch rate: very low.

Latent failures are the real economic problem. Studies in the electronics industry estimate that ESD latent damage accounts for anywhere from 25% to 50% of field failures in certain component categories. The cost per field failure (warranty service, returns processing, reputation damage, customer relationship impact) is typically 5–100× the cost of the component itself.

Break-even calculation framework

If your facility processes 10,000 ESD sensitive assemblies per year:

• Latent failure rate without proper ESD controls: industry estimates 0.5–2%
• That is 50–200 units that will eventually fail in the field
• At a conservative $50 average field repair/replacement cost per unit: $2,500–$10,000 per year in ESD-related field costs
• Premium cost for ESD workbenches in a 10-station facility: $3,000–$8,000 one-time investment

The math favors proper ESD workbenches in virtually every scenario beyond very low-volume hobby electronics.

When a Standard Workbench Is Acceptable

There are legitimate use cases for standard workbenches even in electronics facilities:

• Mechanical assembly areas where only ESD-safe hardware, housings, or non-sensitive sub-assemblies are handled
• Packaging and shipping areas where final products are already inside ESD packaging
• Tool storage and maintenance areas where no sensitive components are present
• Office workstations and break areas obviously

The key question is always: Is an ESD sensitive device ever on this bench without ESD packaging protection? If the answer is yes, you need an ESD workbench. If no, a standard bench is acceptable.

Many facilities benefit from having both types — clearly labeling which areas are EPA zones (ESD bench required) and which are non-EPA (standard bench acceptable). The confusion arises when there is no clear policy and staff inadvertently carry sensitive components outside the designated EPA.

Choosing the Right ESD Workbench: Key Decision Points

Once you have decided on an ESD workbench, the next question is which configuration. The variables that matter most:

1. Tabletop material

• Anti-static HPL: best for general electronics assembly, PCB work, testing — durable, cost-effective
• Anti-static physical board: best for rework, soldering, or chemical exposure environments

2. Height adjustment

• Fixed height: lowest cost, suitable for dedicated single-operator stations
• Manual or crank adjustment: flexible without power dependency — ESD-safe even during adjustment
• Electric height adjustment: best for mixed-shift operations or sit-stand ergonomic requirements; verify the motor and controller are ESD-safe

3. Modular accessory compatibility

• A well-designed ESD workbench should integrate accessories (shelving, lighting, monitor arms, wrist strap testers, storage cabinets) without introducing non-ESD-safe materials into the EPA

4. Frame load capacity

• Light-duty: 300–500 kg for component-level electronics work
• Heavy-duty: 500–1000 kg for sub-assembly or equipment maintenance

5. Compliance documentation

• Supplier should provide test certificates for surface resistance at delivery
• Permanent coating (not ESD mat) preferred for simplicity of ongoing compliance

Summary: Which Bench for Which Application

Detall manufactures ESD workbenches and standard industrial workbenches using the same modular platform — meaning the structural system, accessories, and dimensions are compatible across both types. Facilities that need both ESD and non-ESD workstations can standardize on a single platform, simplifying procurement, maintenance, and future reconfiguration.

See the full range at www.detall-esd.com.

The right workbench for the right application is not a luxury decision — it is a quality and compliance decision. Understand what is happening at each workstation in your facility, and match the bench to the requirement.

Most ESD workbench failures are not dramatic. There is no spark, no smoke, no obvious failure event. The anti-static coating ages imperceptibly. A cleaning solvent that "seemed fine" gradually degrades the surface resistance. A repair job leaves a patch of standard powder coat where the anti-static coat used to be. Then, one day, a surface resistance test shows a reading of 10¹² ohms where it should be 10⁷ — and nobody can tell you when it changed. Regular, documented surface resistance testing is the only way to catch these failures before they become quality problems. This guide walks you through exactly how to do it.

Quick Answer: Test your ESD workbench surface using a surface resistance meter with 5 lb / 2.27 kg parallel bar electrodes, placed 10 inches / 250 mm apart. IEC 61340-5-1 requires surface resistance (point-to-point) between 1 × 10⁴ and 1 × 10¹¹ Ω, and resistance to ground < 1 × 10⁹ Ω. Test at least annually; test immediately after any surface repair, cleaning protocol change, or suspected damage.

Why Surface Testing Is Not Optional

Many facilities test wrist straps daily but test workbench surfaces only when something goes wrong. This is backwards logic. Here is why surface testing matters as much as any other ESD control verification:

Anti-static coatings change over time. Powder coatings — even anti-static formulations — are subject to physical wear, UV exposure, and chemical attack. A surface that passed qualification testing at installation may drift out of specification years later.

Cleaning agents can destroy ESD properties. Alcohol-based cleaners, certain degreasers, and silicone-containing polish products can permanently alter the resistance characteristics of ESD surfaces. A single cleaning incident with the wrong product can push a dissipative surface into the insulative range.

Physical damage is not always visible. Scratches, repairs, or patches with non-ESD materials may not be obvious visually but create localized areas of non-compliance.

Documentation is required for compliance. IEC 61340-5-1 and ANSI/ESD S20.20 both require records of ESD product qualification testing, which includes periodic re-testing of workbench surfaces. Without these records, your compliance claim is unverifiable.

What You Need: Test Equipment

The Surface Resistance Meter

The primary instrument for workbench surface testing is a surface/volume resistance meter (also called a resistance meter or static decay meter with resistance measurement function).

Minimum specifications required:

• Measurement range: 10³ to 10¹³ Ω (the full range of interest for ESD control surfaces)
• Applied voltage: 10V or 100V, depending on standard method (most ESD testers default to 100V for surface resistance)
• Display: digital, with clear numeric readout in ohms or scientific notation

Popular instrument standards:

• ASTM D257 — standard test method for DC resistance or conductance of insulating materials
• IEC 61340-2-3 — standard test method for surface resistance measurement, specifically referenced by IEC 61340-5-1
• ESD Association Standard ANSI/ESD STM4.1 — surface resistance measurement method for ESD worksurfaces

The Electrodes

The electrode type matters significantly. Different electrode configurations yield different results, and using the wrong electrodes makes your test data incomparable to specification limits.

For workbench surface resistance testing per IEC 61340-5-1:

• Parallel bar electrodes (also called concentric ring electrodes for volume resistance) — most commonly used for worksurface P-to-P testing
• Weight: 5 lb (2.27 kg) total per electrode (to ensure consistent contact pressure)
• Electrode spacing: 10 inches (254 mm) for point-to-point surface resistance

If you are testing resistance to ground (worksurface to grounding point), you only need one electrode and a ground lead connected to the bench's grounding lug.

Optional: Humidity and Temperature Logger

ESD surface resistance is sensitive to environmental conditions. Resistance values at 10% RH can be orders of magnitude higher than at 50% RH. IEC 61340-5-1 recommends testing at controlled conditions: 23°C ± 1°C and 12% ± 3% RH (worst case) or 50% ± 5% RH (normal).

At minimum, record the ambient temperature and humidity at the time of testing. It provides context if a borderline reading needs to be evaluated.

The Two Measurements You Need

Measurement 1: Point-to-Point Surface Resistance (Rtt)

This measures the resistance between two points on the workbench surface — essentially testing the electrical continuity and conductivity of the surface material itself.

Required specification (IEC 61340-5-1):

• Minimum: 1 × 10⁴ Ω (if lower, surface may be too conductive — charge discharges too fast)
• Maximum: 1 × 10¹¹ Ω (if higher, surface is too resistive — charge accumulates)
• The dissipative sweet spot is 10⁶ to 10⁹ Ω for most ESD work surfaces

Required specification (ANSI/ESD S20.20):

• Worksurface resistance: < 1 × 10⁹ Ω (to ground)
• (Point-to-point limits reference IEC 61340-2-3 or ESD STM4.1)

Measurement 2: Resistance to Ground (Rtg)

This measures whether the workbench surface is actually connected to ground through the grounding system. A surface can have perfect dissipative resistance values (Rtt) but still be floating — isolated from ground by a broken grounding cable or a corroded connection. Rtg catches this.

Required specification:

• Resistance from surface to ground point: < 1 × 10⁹ Ω
• For workbenches with integrated grounding: test from surface to the grounding lug, then verify the lug-to-ground path separately

Step-by-Step Testing Procedure

Step 1: Prepare the Test Environment

1. Record ambient temperature and relative humidity
2. Ensure the workbench surface is clean and dry — no visible debris, oils, or recent liquid cleaning (allow 15–30 minutes after wet cleaning before testing)
3. Confirm your test instrument's calibration is current
4. Verify the instrument battery level (low battery can affect readings)

Step 2: Set Up the Instrument

1. Turn on the surface resistance meter
2. Set voltage to 100V (standard for IEC 61340-5-1 surface testing)
3. Allow the meter to warm up for 30–60 seconds if it has been in storage

Step 3: Point-to-Point Surface Resistance (Rtt)

1. Place both parallel bar electrodes on the workbench surface, 10 inches (254 mm) apart
2. Ensure both electrodes are on the same surface material (not straddling a seam between materials)
3. Connect the instrument leads to each electrode
4. Apply the test voltage and allow the reading to stabilize — typically 15 seconds for dissipative surfaces, up to 60 seconds for more resistive surfaces
5. Record the reading
6. Repeat at 3–5 different locations across the surface, including corners and the area nearest the grounding connection

Why multiple locations? ESD surface materials can have localized variations. A single center reading may miss a degraded corner or a repaired section. Testing multiple locations gives a representative picture of the entire surface.

Step 4: Resistance to Ground (Rtg)

1. Place one electrode on the workbench surface
2. Connect the other instrument lead to the grounding lug of the workbench (not to a separate earth ground — you are measuring the path through the bench's grounding system)
3. Apply the test voltage and allow reading to stabilize
4. Record the reading
5. Also test from the grounding lug to the facility earth ground (using a continuity tester or low-resistance ohmmeter) to verify the complete path

Step 5: Verify Grounding Cable Continuity

This is separate from the resistance measurement but equally important:

1. Visually inspect the grounding cable for physical damage, kinks, or corrosion at connection points
2. Use a continuity tester to verify the cable has no open circuit
3. Check the resistance of the 1 MΩ resistor (if incorporated in the ground cable) — it should read within ±20% of 1 MΩ

Step 6: Document the Results

Record the following for each bench tested:

• Date and time of test
• Bench identification (ID number, location)
• Ambient temperature and humidity
• Instrument model and serial number, calibration due date
• Rtt readings (location 1–5) with pass/fail notation
• Rtg reading with pass/fail notation
• Tester name / signature
• Any observations (surface condition, recent cleaning, repairs)

Interpreting Results: Pass, Fail, and Borderline

Clear Pass

Rtt: 1 × 10⁶ to 1 × 10⁸ Ω across all test points
Rtg: 1 × 10⁶ to 1 × 10⁸ Ω

No action required. Log the result and file it. Next scheduled test per your ECP.

Clear Fail

Rtt > 1 × 10¹¹ Ω: Surface is insulative. Remove from EPA service immediately. Investigate cause (coating degradation, cleaning damage, repair with wrong material). Replace surface or recoat with qualified ESD coating.

Rtg > 1 × 10⁹ Ω: Surface is not properly grounded. Check and replace grounding cable. Verify CPG connection. Retest after repair.

Rtt < 1 × 10⁴ Ω: Surface may be too conductive. In most electronics work this is acceptable, but verify that the surface does not present a shock hazard to operators or a low-resistance path that could discharge components instantaneously.

Borderline Results (10⁹ to 10¹¹ Ω)

Values in this range are technically within specification but close to the upper limit. Recommended actions:

• Retest under controlled humidity (50% RH) if ambient humidity is low
• Schedule a follow-up test within 3 months
• Note in records that surface is trending toward the upper limit
• Consider proactive surface replacement if the bench is in high-sensitivity production

Localized Failures

If only 1–2 of 5 test locations fail:

• Map the failure location on the bench diagram
• Identify whether the failure corresponds to a visible damage area, repair patch, or weld seam
• Evaluate whether the failing area can be physically avoided (not recommended) or must be remediated

How Often Should You Test?

At installation: Full qualification testing before the bench enters service. Baseline data is essential for trend analysis.

Annually: Minimum re-test frequency for surfaces in continuous production use. Many facilities in high-sensitivity production (semiconductor, medical) test semi-annually.

After any surface event:

• Spill of cleaning chemicals
• Physical surface repair or modification
• Visible scratching or abrasion in heavily used areas
• Any customer audit or internal audit flag

After moving or reconfiguring the bench:

• Physical relocation can dislodge grounding connections
• Reassembly after modification should be followed by full Rtg verification

Recording and Archiving Test Data

Test records serve two purposes: internal quality management and external audit readiness.

Recommended record format:

• Paper log book per EPA zone (simple, reliable, no IT dependency)
• Or: spreadsheet/database with test records exported to PDF for each bench annually

Retention: Keep test records for the life of the bench plus 2–3 years. Some customer requirements (aerospace, medical, defense) specify longer retention periods — check your customer contracts.

Trend tracking: Recording results over time allows you to identify surfaces that are gradually drifting toward the specification limit before they fail. A surface that tests at 10⁸ Ω today but was at 10⁷ Ω two years ago is trending. A surface that was at 10⁷ Ω and is now at 10⁸ Ω may warrant investigation.

A Note on Workbench Design and Testability

Some workbench designs make testing easier than others. A bench with a clearly accessible, labeled grounding lug and a surface that allows electrode placement without obstacles (monitor arms, upright columns blocking corners) is significantly easier to test thoroughly and consistently.

Detall ESD workbenches are designed with integrated grounding hardware and clear access to grounding connection points, making periodic testing straightforward. The permanent anti-static powder coating on all metal components means that frame resistance does not need to be managed separately from the tabletop — the entire bench integrates into the grounding system as a unified assembly.

For facilities establishing or upgrading their ESD testing program, explore the full workbench range at www.detall-esd.com.

Surface testing is a 10-minute task that protects thousands of hours of production work. Build it into your maintenance schedule, document it properly, and your ESD compliance program will have one of its most important verification pillars firmly in place.

Preparing for an IEC 61340-5-1 audit without a structured checklist is an exercise in anxiety. The standard covers everything from worksurface resistance values to personnel grounding to packaging controls — and non-conformances can emerge in places you least expect. Many facilities that invest heavily in ESD workbenches and wrist straps still fail audits because of documentation gaps, inconsistent testing schedules, or overlooked areas like storage zones and incoming inspection. This guide breaks down IEC 61340-5-1 into a practical, actionable compliance checklist you can use for internal self-audits and third-party preparation.

Quick Answer: IEC 61340-5-1 compliance requires a written ESD Control Program (ECP) document, defined and marked Electrostatic Protected Areas (EPAs), verified grounding systems, qualified ESD control products, regular personnel protection testing, and documented audit records. Use this checklist to identify gaps before an auditor does.

Understanding IEC 61340-5-1: Scope and Structure

IEC 61340-5-1 is titled "Protection of electronic devices from electrostatic phenomena — General requirements". It is published by the International Electrotechnical Commission and is the primary international reference standard for ESD control in electronics manufacturing environments.

The standard works in conjunction with IEC 61340-5-2, which provides a user guide with implementation guidance. Together, they form the basis for ESD control programs accepted in Europe, Asia-Pacific, and most international supply chains.

Key points about the standard's scope:

• Applies to any facility where ESD sensitive devices (ESDs) are handled
• Covers the entire handling lifecycle: manufacturing, storage, testing, repair, and transport within the facility
• Requires a documented, implemented, and regularly audited ESD Control Program
• Sets specific resistance limits for all ESD control products (not performance targets — these are pass/fail thresholds)

Section 1: ESD Control Program Document

The ECP document is the foundation. Without it, nothing else is verifiable.

Checklist:

• [ ] Written ECP document exists and is version-controlled
• [ ] Document defines the scope of ESD protection (which products, which areas)
• [ ] Roles and responsibilities are assigned (ESD Coordinator named)
• [ ] Applicable standards are referenced (IEC 61340-5-1 and/or ANSI/ESD S20.20)
• [ ] All required ESD control measures are listed with their specified resistance/performance limits
• [ ] Training requirements are defined (frequency, content, documentation method)
• [ ] Audit and verification schedule is defined
• [ ] ECP document is reviewed and updated at least annually
• [ ] EPA floor plan drawing is attached or referenced

Common non-conformance: ECP document exists but has not been reviewed or updated in more than 12 months. Auditors treat a stale document as evidence that the program is not actively managed.

Section 2: Electrostatic Protected Area (EPA) Definition and Marking

Standard requirement: All handling of ESD sensitive devices must occur within a defined and marked EPA.

Checklist:

• [ ] EPA boundaries are defined on a floor plan drawing
• [ ] EPA boundaries are physically marked (floor tape, signage at entry points)
• [ ] EPA entry/exit points have posted ESD awareness notices
• [ ] EPA boundary prevents uncontrolled non-ESD-safe materials from entering
• [ ] EPA includes only ESD-compliant surfaces, equipment, and containers
• [ ] Non-ESD-safe materials (standard plastics, polystyrene, non-ESD packaging) are excluded from the EPA
• [ ] Any expansion of EPA boundaries is documented and re-verified

Common non-conformance: The EPA is informally understood by staff but not formally marked or documented. Or: personal items (plastic water bottles, phone cases) are regularly brought into the EPA without control.

Section 3: Grounding System

The grounding system connects all conductive elements in the EPA to a common earth reference, preventing charge accumulation and ensuring safe charge dissipation.

Checklist:

• [ ] Common Point Ground (CPG) system is installed in each EPA zone
• [ ] CPG connects to facility earth ground
• [ ] All ESD workbench surfaces are connected to CPG
• [ ] All floor mats / ESD flooring connects to CPG or has verified resistance path to ground
• [ ] Wrist strap connection points are available at each workbench and connected to CPG
• [ ] Grounding cables include 1 MΩ current-limiting resistors (personnel ground) where required
• [ ] Grounding connections are inspected periodically for corrosion, breakage, or loose connections

Resistance specifications (IEC 61340-5-1):

Common non-conformance: Grounding cables are connected but have never been tested. Or: the CPG is connected to a structural steel column rather than a verified earth ground.

Section 4: ESD Control Products — Worksurfaces

The workbench surface is the primary ESD control item in any EPA. It must be both dissipative and grounded.

Checklist:

• [ ] All worksurfaces are made from dissipative or conductive material
• [ ] Surface resistance (point-to-point) is within 1 × 10⁴ to 1 × 10¹¹ Ω
• [ ] Resistance to ground is < 1 × 10⁹ Ω
• [ ] Anti-static coating (if applicable) is permanent, not spray-on or temporary
• [ ] Worksurface qualification test records are on file
• [ ] Periodic re-testing of worksurfaces is scheduled and documented (recommended: at least annually)
• [ ] Damaged or worn surfaces are replaced, not patched with non-ESD materials

Common non-conformance: Using temporary ESD mats on top of non-ESD tables without verifying the mat-to-ground resistance path. The mat may be dissipative, but if it is not grounded, it provides no protection.

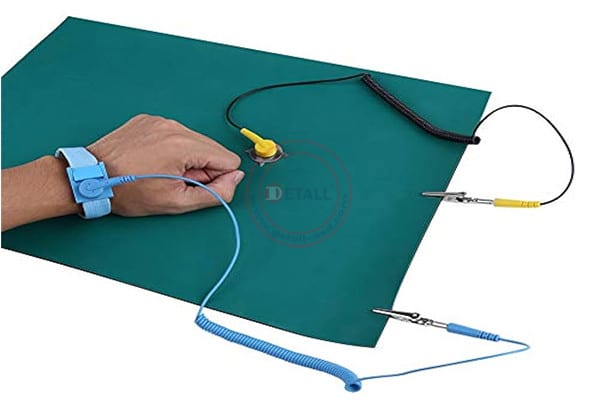

Section 5: Personnel Protection — Wrist Straps

Personnel are the highest single source of ESD risk in most facilities. Wrist straps are the primary control for seated operators.

Checklist:

• [ ] Wrist straps are worn by all personnel handling ESD sensitive devices at workbenches
• [ ] Wrist straps are tested before each use using a wrist strap tester
• [ ] Wrist strap tester is calibrated and records results with pass/fail indication
• [ ] Wrist strap test logs are maintained (date, operator ID, pass/fail)
• [ ] Failed wrist straps are immediately removed from use and replaced
• [ ] Spare wrist straps are available to replace failed units immediately
• [ ] Wrist strap resistance (combined strap + cord) is within 750 kΩ to 35 MΩ

Common non-conformance: Wrist straps are available and worn, but testing logs show gaps — some operators skip testing on busy days, or the tester is broken and no one reported it.

Section 6: Personnel Protection — ESD Footwear and Smocks

For areas where operators move through the EPA (not just seated), footwear grounding is required.

Checklist:

• [ ] ESD footwear (ESD shoes or heel straps) is used in walking EPA zones
• [ ] ESD footwear is tested regularly (recommended: daily or per shift)
• [ ] Combined system resistance (footwear + ESD floor) is < 3.5 × 10⁷ Ω
• [ ] ESD smocks are worn in high-charge-generation risk areas
• [ ] Personnel are not allowed to wear standard clothing with high triboelectric charge potential (e.g., nylon, polyester) as outer garments inside the EPA without an ESD smock
• [ ] ESD garment resistance is tested periodically

Common non-conformance: Heel straps are provided but not worn consistently, particularly by visiting staff or contractors.

Section 7: ESD Storage and Containers

Components and assemblies not on the workbench must still be protected.

Checklist:

• [ ] All storage containers within the EPA are ESD-compliant (dissipative or conductive)
• [ ] Storage bins, totes, and trays meet required resistance specifications
• [ ] ESD sensitive devices in storage are not placed in standard plastic containers
• [ ] Shelving units in the EPA are ESD-compliant or have dissipative shelf liners
• [ ] ESD storage items are tested periodically and records maintained
• [ ] No standard foam (white polystyrene) is used anywhere near ESD sensitive devices — it generates charge on contact

Section 8: ESD Packaging Controls

Packaging is the last layer of protection before components leave the EPA.

Checklist:

• [ ] All ESD sensitive devices leaving the EPA are packed in ESD-appropriate packaging
• [ ] Metalized shielding bags are used for devices requiring Faraday cage protection
• [ ] Packaging is performed inside the EPA, on an ESD-safe surface
• [ ] ESD packaging materials are sourced from qualified suppliers with test data
• [ ] ESD labels are applied to outer packaging
• [ ] Packaging materials are tested periodically or supplier test certificates are on file
• [ ] Pink poly bags (anti-static only) are not used for devices requiring shielding

Common non-conformance: Using pink poly bags as shielding — they are anti-static but have no shielding capability. Devices inside them are still exposed to external electrostatic fields.

Section 9: Test Equipment and Calibration

All measurement tools used for ESD compliance verification must be capable of measuring within the required ranges and must be calibrated.

Checklist:

• [ ] Surface resistance meter with appropriate electrodes is available and in working order
• [ ] Wrist strap / footwear tester is available and calibrated
• [ ] Calibration records for all test instruments are maintained
• [ ] Calibration is performed on schedule (typically annually, per manufacturer guidance)
• [ ] Out-of-calibration instruments are taken out of service immediately
• [ ] Test electrode types match those specified in IEC 61340-2-3 (for surface resistance testing)

Section 10: Training Records

IEC 61340-5-1 requires that all personnel who handle ESD sensitive devices receive training on ESD fundamentals and EPA requirements.

Checklist:

• [ ] Initial ESD training is provided to all new employees before they handle ESD sensitive devices
• [ ] Training covers: ESD fundamentals, EPA procedures, PPE use, what to do if equipment fails
• [ ] Training records are maintained (name, date, training content reference)
• [ ] Refresher training is conducted annually (or more frequently if audit findings indicate issues)
• [ ] Training content is reviewed and updated when procedures change
• [ ] Records are retained for the duration of employment plus a defined period after departure

Section 11: Audit and Continuous Improvement

An ECP without regular auditing is just a document. The standard requires ongoing verification.

Checklist:

• [ ] Internal ESD audits are conducted on a defined schedule (minimum: annually; recommended: quarterly)
• [ ] Audit scope covers all EPA zones, all grounded equipment, all personnel protection items
• [ ] Audit findings are documented with non-conformance descriptions
• [ ] Corrective actions are assigned with responsible owners and due dates
• [ ] Corrective action effectiveness is verified before closure
• [ ] Audit records are maintained for review by customers or third-party auditors

Preparing for a Third-Party IEC 61340-5-1 Audit

Third-party auditors typically spend 4–8 hours reviewing both documentation and physical compliance. The most common findings:

1. Out-of-date ECP document — not reviewed in 12+ months
2. Missing test records — wrist strap tests, surface resistance tests, grounding verification
3. Unmarked EPA boundaries — EPA exists in practice but is not formally marked
4. Non-ESD materials in the EPA — personal items, standard packaging, non-compliant storage bins
5. Calibration lapses — test instruments with expired calibration certificates

The single most effective preparation step: conduct a full internal audit 4–6 weeks before the third-party visit, generate corrective actions for every finding, and close them all before the audit date.

How Your Workbench Choice Affects Compliance

The workbench is the item auditors test first and examine most closely. A workbench with permanent anti-static powder coating — tested at installation and verified to maintain resistance values for 10+ years — dramatically simplifies Section 4 and 5 compliance. You are not managing coating degradation, you are not replacing ESD mats when they wear out, and you are not explaining gaps in re-testing records.

Detall's ESD workbench range is designed with IEC 61340-5-1 compliance as a baseline, not an add-on. All metal components receive permanent anti-static powder coating, integrated wrist strap grounding points are standard, and the modular system allows the bench to grow with your process without introducing non-compliant materials.

Learn more at www.detall-esd.com.

Use this checklist as your pre-audit walkthrough tool. Print it, bring it to the production floor, and check every item in every EPA zone. The findings you discover internally are the ones you fix before an auditor — or worse, a customer — finds them for you.

Single-station ESD compliance is relatively straightforward: one workbench, one grounding point, one operator with a wrist strap. Scale that to a 20-station, 50-station, or 100-station production cell, and the complexity increases in ways that catch many facilities off guard. Grounding network design, common point ground topology, EPA boundary management, personnel flow, and equipment standardization all become system-level challenges rather than individual workstation tasks. Get it right, and you have a scalable, auditable ESD control infrastructure. Get it wrong, and you have dozens of workbenches that look compliant but share unverified grounding, inconsistent personnel protection, and EPA boundaries that exist on paper but not in practice. This guide covers the complete planning and implementation process for multi-station EPA production cells.

Quick Answer: A multi-station EPA production cell requires a Common Point Ground (CPG) network connecting all workbenches, floor systems, and storage to a single verified earth ground reference. Plan the cell by defining EPA boundaries, designing the ground topology, standardizing workbench configurations, implementing personnel protection at every station, marking boundaries, and verifying the entire system with documented resistance testing before production begins.

What Is an EPA (Electrostatic Protected Area)?

An Electrostatic Protected Area is a defined workspace where ESD sensitive devices are handled and where all materials, equipment, and personnel meet ESD control requirements specified in IEC 61340-5-1 or ANSI/ESD S20.20. It is not simply an area with ESD workbenches — it is a controlled environment with:

• Defined and marked boundaries — physical barriers or floor markings that distinguish EPA from non-EPA
• Controlled materials — no non-ESD-safe items (standard plastics, polystyrene, personal items) inside the boundary
• Grounded infrastructure — all surfaces and equipment connected to a verified earth reference
• Protected personnel — all operators wearing and testing appropriate ESD PPE
• Documented verification — resistance test records for all ESD control items

A single workbench with an ESD surface is not an EPA. An EPA is a system. A multi-station production cell is that system at scale.

Phase 1: Define the EPA Boundaries

Before selecting a single workbench or running a single ground cable, define where the EPA will exist and where it will not.

Boundary Considerations

Physical footprint: Map the floor area that will be included in the EPA. Include:

• All workstations where ESDS are handled
• Aisles between workstations where operators walk while carrying ESDS
• Adjacent storage areas where unpackaged ESDS are staged
• Inspection and test stations that handle unpackaged ESDS

What to exclude from the EPA:

• Material staging areas where all ESDS remain in shielding packaging
• Supervisory walkways and observation areas (unless supervisors routinely handle ESDS)
• Adjacent processes that do not involve ESDS (mechanical assembly, etc.)
• Break areas, restrooms, and office spaces

Rule of thumb: If a person can be within 30 cm (12 inches) of an unpackaged ESDS while standing in a location, that location should be inside the EPA boundary.

Boundary Marking

Physical marking is not optional — it is a standard requirement:

• Floor tape: Most common. Use a high-visibility color (yellow is universal; some facilities use green for EPA). Apply continuous tape at the EPA perimeter.
• Entry signage: Post ESD awareness signs at every entry point to the EPA. Content: ESD sensitive area, wrist straps required, no non-ESD materials, PPE required.
• Visual cues: Consider using different floor tile color, overhead lighting zone, or painted floor areas to reinforce the EPA boundary visually.

Document the boundary on a facility floor plan drawing. This drawing becomes part of your ECP documentation and is the primary reference document for auditors.

Phase 2: Design the Common Point Ground (CPG) Network

The CPG network is the electrical backbone of a multi-station EPA. Every grounded element — workbench surfaces, floor mats, ESD shelving, equipment frames, operator wrist straps — must connect to a single earth reference through this network.

Why a CPG Matters at Scale

In a single-station setup, a grounding error affects one workstation. In a 50-station cell, a design error in the CPG topology can affect every station simultaneously. Worse, if different sections of the EPA have different ground references (connected to different circuit ground points, for example), a potential difference can exist between ground points — creating a situation where charge flows between two "grounded" objects when they contact each other.

The CPG eliminates this by ensuring a single earth reference for the entire EPA.

CPG Topology for Multi-Station Cells

Star topology (recommended for cells up to ~30 stations):

• A single CPG bus bar is installed in a central location in the EPA
• Each workbench, shelving unit, and floor section connects via individual ground cables to the CPG bus
• The CPG bus connects to facility earth ground via one heavy-gauge ground conductor
• Every ground path can be individually measured and verified

Distributed bus topology (recommended for larger cells, 30–100+ stations):

• Multiple CPG bus bars are installed at regular intervals (every 10–15 meters)
• Each sub-bus connects to a main CPG bus
• The main bus connects to facility earth ground
• Reduces cable run lengths and simplifies troubleshooting

In both topologies:

• Each individual ground cable should include a 1 MΩ current-limiting resistor for personnel ground connections (wrist strap outlets). This protects the operator from electrical shock if a live conductor is accidentally contacted.
• Equipment ground connections (workbench frames, shelving, ESD floor) do not require the 1 MΩ resistor — they connect to the CPG directly.
• Document every ground point on the floor plan, including cable routing.

Ground Cable Specifications

• Minimum conductor gauge: 22 AWG for wrist strap connections; 18 AWG or heavier for equipment ground
• Connectors: ESD-rated grounding snaps or ring terminals, not bare wire ends
• Color: Green or yellow-green (international standard for protective earth)
• Length: Minimize — shorter runs have less resistance and are easier to inspect
• Routing: Route cables under benches or through cable trays where possible; avoid areas where cables will be walked on or driven over

Phase 3: Workbench Configuration and Standardization

One of the most significant advantages of a multi-station production cell is the ability to standardize workbench configurations — every station has the same layout, same accessories, same tools, and the same ergonomic setup. This enables:

• Operators to rotate between stations without relearning the layout
• Consistent quality outcomes across all stations
• Simplified procurement and maintenance (one SKU list for all stations)
• Easier auditing (one station's compliance record represents all similar stations)

Defining the Standard Configuration

Before purchasing, create a standard workbench specification that defines:

1. Base / leg frame type — height-adjustable (manual, crank, or electric) based on ergonomic requirements and shift structure

2. Tabletop size and material — width × depth matched to the assembly process; ESD HPL or ESD physical board

3. Upright system — single or double upright, height based on available overhead space and storage requirements

4. Standard accessories per station:

   • Anti-static back panel
   • Upper shelf (if WIP storage at station is required)
   • Lighting: under-shelf ESD-safe LED lamp or overhead arm lamp
   • Wrist strap outlet: mounted to upright or frame, connected to CPG
   • Wrist strap tester: mounted at station (optional, but strongly recommended)
   • Monitor arm: if operator uses a screen at the station
   • Cable management: ESD-safe cable tray or routing clips
   • Drawers or storage cabinet: if components are stored at the station
   • Tool rail and hooks: ESD-safe tool holders

5. Ground connection point: standardize the ground lug location on every bench (rear left corner, for example) so cable routing is consistent across all stations.

Specifying ESD Compliance for Every Item

Every item attached to or placed on the workbench that will contact ESDS must be ESD-compliant:

• Standard lighting with non-ESD-safe lamp housings should not be used (plastic lamp bodies can generate tribocharge)
• Monitor arms with standard painted finish are acceptable as long as they do not contact ESDS directly
• Tool holders should be ESD-safe (dissipative handles, dissipative bins)
• Cable ties and clips should be ESD-safe or metallic

Create a Bill of Materials (BOM) for the standard station configuration, with resistance/compliance data for every item. This becomes the qualification record for the station type.

Phase 4: Personnel Protection System

Personnel protection at scale requires system-level thinking rather than relying on individual compliance.

Wrist Strap Management

For a 50-station cell with three shifts:

• Each operator has a personally assigned wrist strap (not a shared pool). Personal assignment improves accountability and makes it easy to trace a failed strap to the operator who used it.
• Daily testing before first use at each shift. Either centralized testers at cell entry points, or one tester per workstation. Centralized entry-point testing is more reliable for compliance tracking.
• Test logging: either a physical paper log at each tester or a digital log if tester has data output capability. Log must capture: date, shift, operator ID, result (pass/fail).
• Spare strap inventory: maintain at least 10–15% of station count as spare wrist straps at the cell supervisor's station. Failed straps are swapped immediately — no operator works without a verified strap.

ESD Footwear

For walking EPA zones (aisles between stations, material transfer paths):

• Designate EPA-dedicated footwear or heel straps for the cell
• Test footwear + floor system at beginning of each shift
• If personal footwear is used (ESD shoes), verify compliance at onboarding and annually

ESD Smocks

In high-risk environments (high-sensitivity devices, clean rooms, medical device assembly):

• All operators wear ESD smocks inside the EPA
• Smocks are tested for surface resistance and ESD performance at qualification and annually
• Coordinate smock style with safety requirements — some facilities require Hi-Vis vests over smocks, which must also be ESD-compliant

Visitor and Contractor Protocol

Define a clear procedure for anyone entering the EPA who is not a regular operator:

• Visitors: ESD escort, heel straps provided at EPA entry, no personal items inside EPA
• Contractors: must receive ESD awareness briefing before entering; must wear wrist strap or heel strap for any duration inside EPA
• Document contractor and visitor ESD compliance in your ECP visitor log

Phase 5: Zoning and Material Flow

A well-designed multi-station EPA has clear material flow paths that prevent ESDS from ever leaving the EPA accidentally.

Material Flow Design Principles

Incoming staging zone: Just inside the EPA entry, designate an area where incoming components are removed from non-ESD outer packaging and transferred to ESD-compliant internal packaging (totes, bins, trays). This transition zone must have an ESD workbench or ESD-safe table.

WIP flow path: Define the routing of components through the production cell. WIP should move in ESD-safe totes, on ESD-safe carts, along aisles that are within the EPA boundary.

Outgoing packaging zone: At the EPA exit, designate a station where finished assemblies are placed into shielding bags before leaving the EPA. This station must be inside the EPA boundary.

Non-conforming material path: Define how rejected ESDS are handled — they must be packaged and labeled before leaving the EPA, even if going to rework.

Cart and Transfer Equipment

ESD transport carts inside the EPA must meet ESD specifications:

• Frame: anti-static powder coated metal
• Shelf surface: ESD-safe (dissipative or covered with ESD mat)
• Casters: ESD-conductive casters, providing ground path to floor
• Verify combined cart-to-floor resistance meets specification

Phase 6: Verification and Initial Baseline Testing

Before the production cell goes live, every ESD control item must be tested and results documented. This baseline data serves two purposes: it confirms compliance before production begins, and it provides the reference point for future periodic re-testing (trend analysis).

Pre-Production Test Protocol

For each workstation:

• [ ] Workbench surface Rtt (point-to-point resistance) — 5 locations
• [ ] Workbench surface Rtg (resistance to ground)
• [ ] Ground cable continuity
• [ ] Wrist strap outlet Rtg
• [ ] Floor / mat Rtg in all aisles

For the CPG network:

• [ ] Each ground cable resistance (ohmmeter from bench lug to CPG bus)
• [ ] CPG bus to facility earth ground resistance (must be < 1 Ω for the connection itself)
• [ ] Verify all connections are secure and labeled

For personnel protection:

• [ ] Sample wrist strap testing (test 100% of wrist strap inventory)
• [ ] Footwear + floor system testing (100% of personnel footwear)
• [ ] Smock resistance testing (if applicable)

Record all results in the EPA baseline test report. This document, signed by the ESD Coordinator, is the starting point of your compliance record for the cell.

Common Multi-Station EPA Design Errors

Single ground point for too many stations. One CPG for a 100-station cell creates extremely long cable runs on the far side of the cell. Resistance increases with cable length; verify actual measured resistance values, not calculated estimates.

Ground cables sharing conduit with power cables. Can introduce electrical noise and potential differences. Route ground cables separately from power distribution.

EPA boundary that is impossible to maintain. Designing an EPA boundary that cuts through the middle of a walkway, or puts a supervisor's desk half inside and half outside the EPA, guarantees that the boundary will be violated constantly. Design boundaries to follow natural physical barriers (walls, aisles, equipment rows).

Assuming floor grounding carries personnel. In some cell designs, the floor is grounded but wrist strap outlets are not installed at each bench — the assumption being that operators wear heel straps and the floor carries their charge. This is valid only if operators are tested daily on the floor system and are standing, not seated. Seated operators need wrist straps; the floor is irrelevant for a sitting person.

No replacement plan for consumables. Wrist straps wear out. ESD mats degrade. Shielding bags run out. Multi-station cells need a stocked replacement inventory and a defined reorder process, or compliance will gap when consumables run out mid-shift.

Insufficient documentation at scale. A 10-station cell might be manageable with a shared log book. A 100-station cell needs station IDs, a test schedule, a dedicated log format, and probably a digital tracking system. Design the documentation system before going live.

Scaling the EPA: From 10 to 100+ Stations

Multi-station EPAs are designed to scale. The modular architecture that makes this work:

• Standardized workbench platform: Every station is built from the same base/upright/accessory system. Adding 20 more stations is a purchasing exercise, not a re-engineering exercise.
• Distributed CPG topology: Add CPG sub-buses as you add station rows. The topology scales linearly.
• Standardized test schedule: One test form covers all similar stations. Test technicians can certify a new row of 10 identical stations in an afternoon.
• Personnel onboarding: New operators receive the same training regardless of which station they are assigned to. Station-specific quirks do not exist because configurations are identical.

The initial design investment in standardization pays back multiplied with each expansion cycle.

Detall's modular workbench platform was designed from the ground up for exactly this kind of standardized, scalable multi-station deployment. From L-base to heavy-duty 4-leg frames, manual to electric height adjustment, single to double uprights — the entire system is interchangeable, accessory-compatible, and ESD-certified. Facilities equipping new production cells or expanding existing EPAs can configure every station from a single product platform, simplifying procurement, maintenance, and compliance documentation.

For multi-station EPA workbench solutions, visit www.detall-esd.com.

A multi-station EPA is not 50 individual ESD workstations — it is one interconnected system. Plan it that way, document it that way, test it that way, and you will have ESD protection that scales with your production and satisfies the most demanding customer audits.

Setting up a production line without a formal ESD control program is like building a clean room without a contamination protocol — it works until it doesn't. Electrostatic discharge damage is invisible, cumulative, and notoriously hard to trace after the fact. Many electronics manufacturers discover their ESD problem only after field failure rates spike, customer returns pile up, or an audit flags non-compliance with IEC 61340-5-1 or ANSI/ESD S20.20. By that point, the cost of inaction far exceeds the cost of proper setup. This guide walks you through building a complete ESD Control Program (ECP) from scratch — systematically, practically, and in compliance with international standards.

Quick Answer: An ESD Control Program is a documented, systematic approach to preventing electrostatic discharge damage in electronics manufacturing. It covers EPA designation, grounding systems, personnel protection, packaging controls, and regular auditing. Both IEC 61340-5-1 and ANSI/ESD S20.20 require a written ECP as the foundation of compliance.

What Is an ESD Control Program (ECP)?

An ESD Control Program is the formal framework that governs how your facility identifies, controls, and monitors electrostatic discharge risk. It is not just a collection of equipment — it is a documented system that includes policies, procedures, responsibilities, equipment requirements, and verification protocols.

The two dominant international standards that define ECP requirements are:

• IEC 61340-5-1 — the globally recognized standard for ESD protection of electronic devices, widely required in Europe and Asia-Pacific markets
• ANSI/ESD S20.20 — the U.S.-centric standard with similar objectives, often required by U.S. defense and aerospace customers

Both standards mandate a written ECP document as the cornerstone of compliance. Without it, individual pieces of ESD-safe equipment (workbenches, mats, wrist straps) are unverified and uncoordinated.

Who Needs an ECP?

If your facility handles ESD Sensitive Devices (ESDs) — which includes virtually all modern semiconductor components, PCBs, sensors, and integrated circuits — you need an ECP. This applies to:

• EMS contractors and PCBA manufacturers
• PCB assembly, test, and rework facilities
• Semiconductor back-end test and packaging
• Instrument, sensor, and power supply manufacturers
• Electronics repair and refurbishment centers
• R&D labs handling prototype components

The Six Core Elements of an ESD Control Program

A complete ECP consists of six interdependent elements. Miss any one of them and the entire program has gaps.

1. Written ECP Document

The ECP document is your program's constitution. It should define:

• Scope: Which products, processes, and areas are covered
• Responsibilities: Who owns the ECP (typically an ESD Coordinator), who trains staff, who audits compliance
• Applicable standards: IEC 61340-5-1, ANSI/ESD S20.20, or both
• Equipment specifications: Required resistance ranges for all ESD control items
• Training requirements: Frequency, content, and documentation of employee training
• Audit schedule: How often compliance is verified and by whom

Keep the document version-controlled and reviewed annually. Many certification auditors will ask for revision history.

2. EPA (Electrostatic Protected Area) Definition

An EPA is a defined zone where ESD sensitive devices are handled and where all materials and equipment meet ESD control requirements. The EPA boundary is not just physical — it is procedural.

Key EPA requirements:

• Clearly marked boundaries (floor tape, signage, entry/exit notices)
• All surfaces within the EPA must meet resistance specifications
• Non-ESD-safe items (standard plastic bags, polystyrene cups, personal items) must not enter the EPA
• A Common Point Ground (CPG) system connects all grounded items to a single earth ground reference

EPA boundaries should be documented in a floor plan drawing. As your facility grows, EPA zones must be formally expanded and re-verified.

3. Grounding System

Grounding is the physical backbone of ESD control. Every conductive element in the EPA — workbench surfaces, floor mats, wrist straps, carts, shelving — must connect to a common ground point.

Common Point Ground System:

• A dedicated grounding bus bar or ground reference point is installed per EPA zone
• All equipment connects to this CPG via grounding cables with current-limiting resistors (1 MΩ is standard for personnel ground)
• The CPG connects to facility earth ground through the building's electrical system

Grounding system requirements to verify:

• Wrist strap resistance: 750 kΩ to 35 MΩ (IEC 61340-5-1)
• Worksurface resistance to ground: < 1 × 10⁹ Ω
• Floor resistance: < 1 × 10⁹ Ω
• ESD footwear + floor system resistance: < 3.5 × 10⁷ Ω

4. Personnel Protection

People are the most significant source of ESD charge generation in a production environment. Walking across a floor, removing a jacket, or picking up a component can generate thousands of volts on the human body.

Personnel protection measures:

• Wrist straps: Must be worn at all times when handling ESD sensitive devices at workbenches. Coiled cord type, connected to the CPG.
• ESD footwear or heel straps: Required when working in walking EPAs where floor grounding is in place
• ESD smocks/lab coats: Required in high-risk areas; prevents charge generation from personal clothing
• No restriction on hair per most standards, but long hair near ESDS should be controlled

Critical rule: Wrist straps must be tested daily before use. A broken or degraded wrist strap provides zero protection while giving the operator false confidence.

5. ESD-Safe Materials and Equipment

Every piece of equipment inside the EPA must meet ESD control specifications:

A common mistake is mixing compliant and non-compliant items inside the EPA boundary. A single piece of standard plastic packaging left on an ESD workbench surface can generate a field charge of several thousand volts — enough to damage most sensitive components.

6. Packaging Controls

ESD control does not stop at the workbench. Components leaving the EPA — whether for transit, storage, or shipment — must be protected by ESD packaging.

Required packaging levels:

• Pink poly bags: Anti-static, for low-sensitivity parts
• Metalized shielding bags: For ESD sensitive devices; provide Faraday cage shielding
• Conductive foam: For through-hole and leaded components
• ESD labels: Required on outer packaging to identify contents and handling requirements

Packaging should be done inside the EPA, on an ESD-safe surface, by trained personnel.

How to Implement an ECP: A Phased Approach

Trying to achieve full ECP compliance in one step is unrealistic for most facilities. A phased approach reduces disruption and builds competency progressively.

Phase 1: Assessment (Weeks 1–2)

• Walk every area where ESD sensitive devices are handled
• Document existing ESD control measures (if any)
• Identify gaps against IEC 61340-5-1 or ANSI/ESD S20.20
• Map EPA boundaries and current grounding points
• Assign an ESD Coordinator

Phase 2: Infrastructure (Weeks 3–6)

• Install or upgrade ESD workbenches, floor mats, and grounding systems
• Establish Common Point Ground connections
• Replace non-compliant materials (standard plastic bins, non-ESD packaging)
• Order test equipment: surface resistance meter, wrist strap tester

Phase 3: Documentation (Weeks 4–6, parallel)

• Write the ECP document
• Create EPA floor plan drawings
• Define test intervals and logging procedures
• Establish incoming material inspection procedures for ESD packaging

Phase 4: Training (Weeks 6–8)

• Train all personnel who enter EPA zones
• Cover: what ESD is, why it matters, how to use all PPE correctly, what to do if equipment fails a test
• Document training with signed attendance records
• Consider annual re-training requirement

Phase 5: Verification and Audit (Week 8 onward)

• Conduct initial baseline testing of all ESD control items
• Log results against specification limits
• Identify and correct any failures
• Schedule periodic audits (typically quarterly internal, annual third-party)

Common ECP Startup Mistakes to Avoid

Buying equipment without a program. ESD workbenches and wrist straps are only effective within a managed, tested, documented system. Equipment alone does not equal compliance.

No designated ESD Coordinator. Without ownership, programs drift. Assign one person to be accountable.

Skipping the grounding verification. Many facilities assume grounding works because it was installed. Test it. Grounding connections corrode, cables break, and resistors fail.

Training only new hires. ESD awareness requires regular reinforcement. Annual re-training is a minimum.

No incoming inspection for ESD packaging. Suppliers may not use compliant packaging. Inspect incoming component packaging against your ECP requirements.

Incomplete EPA boundaries. If your EPA floor plan is "roughly here," it is not an EPA. Boundaries must be defined, marked, and enforced.

ECP Documentation: What Auditors Look For

When an IEC 61340-5-1 or ANSI/ESD S20.20 auditor reviews your ECP, they typically look for:

1. Written ECP document with version control
2. EPA floor plan with boundary markings
3. Equipment qualification records (test results at installation)
4. Wrist strap and footwear test logs (daily)
5. Periodic audit records (workbench, floor, grounding)
6. Training records (names, dates, content covered)
7. Corrective action records for out-of-spec findings

If any of these are missing or incomplete, you will receive a non-conformance finding. Most auditors are looking for evidence that the program is actively managed, not just documented on paper.

How a Well-Designed Workbench System Supports Your ECP

The workbench is the primary work surface within any EPA, and it is the most visible indicator of ESD compliance to any auditor or customer visitor. A properly specified ESD workbench simplifies ECP implementation significantly:

• Permanent anti-static coating on all metal surfaces eliminates the need to track surface coating degradation
• Integrated grounding points provide a single, reliable connection to the CPG for both the surface and personnel wrist straps
• Modular design allows the bench to expand with your process — adding lighting, monitor arms, drawers, and tool storage without introducing non-compliant materials

Detall's ESD workbench series is built to IEC 61340-5-1 and ANSI/ESD S20.20 specifications, with permanent powder coating verified to maintain dissipative resistance values over 10+ years of production use. For facilities building or upgrading an ECP, the workbench platform is often the right starting point — everything else in the EPA can be designed around it.

Explore Detall's ESD workbench configurations at www.detall-esd.com.

Building an ESD Control Program is an investment that pays for itself in reduced field failures, lower rework costs, and the confidence that comes from genuine compliance. Start with the documentation, get the infrastructure right, train your people, and audit consistently. That is the formula — and it works.

Published by Detall Electronics Technology | www.detall-esd.com

Introduction: The Unsung Hero of Your Fulfillment Operation

In any warehouse, distribution center, or e-commerce fulfillment facility, the packing table is where it all comes together. It's the station where products get prepared, wrapped, boxed, labeled, and sent out the door to customers.

And yet, packing tables are often one of the most overlooked pieces of infrastructure in a facility. Companies invest heavily in inventory systems, automation, and logistics software — but put their workers at a poorly designed, generic workbench that slows them down, causes injuries, and creates packing errors.

The right packing table doesn't just hold boxes. It accelerates your throughput, reduces errors, improves worker wellbeing, and protects your products in transit — all at the same time.

This guide covers everything you need to know about packing tables: what they are, how to choose the right one, and why the right design can transform your packing operation.

What Is a Packing Table?

A packing table (also called a packing workstation or packaging bench) is a purpose-built work surface designed for the preparation, packaging, and labeling of products before shipment.

Unlike a generic workbench, a purpose-designed packing table is optimized for the specific demands of packing work:

• Ergonomic working height to reduce fatigue and injury over long shifts
• Integrated storage for tape guns, bubble wrap, void fill, labels, and scanners
• Smooth, durable surface that can withstand daily wear from boxes and cutting tools
• Cable management for barcode scanners, label printers, and computers
• Modular accessories that can be configured for different packing workflows

In modern fulfillment operations — especially with the explosive growth of e-commerce — the packing table has evolved from a simple bench into a precision productivity tool.

Why Packing Table Design Matters: The Business Case

Let's look at the numbers. In a typical e-commerce fulfillment center:

• A packer handles 100–400 orders per shift
• Each order involves picking, verifying, packing, labeling, and placing
• Small inefficiencies add up: an extra 10 seconds per order = over 1 hour of lost productivity per shift per worker

Multiply that across a team of 20 packers, and you're looking at potentially 20+ hours of lost capacity every single day — just from a poorly designed workstation.

On top of productivity, ergonomics matter for legal and human reasons. Poor workstation design is a leading cause of:

• Repetitive strain injuries (RSI) — wrist, shoulder, and back problems
• Fatigue-related packing errors — wrong items, poor packaging, damage in transit
• High staff turnover — uncomfortable jobs drive people away

A well-designed packing table pays for itself quickly through improved throughput, reduced errors, and lower staff turnover.

Key Features of a High-Performance Packing Table

When evaluating packing tables, look for these critical features:

✅ Ergonomic Working Height

The ideal working height for a packing station is 850–950mm for standing work, allowing the arms to work at a natural angle without hunching or reaching upward. Height-adjustable options (usually 700–1050mm) accommodate workers of different heights and allow sit-stand flexibility during long shifts.

✅ Durable, Easy-to-Clean Surface

Packing work is tough on surfaces. Tape, cutting, glue, and constant abrasion require a work surface that can take punishment. Look for:

• High-density laminate or steel surfaces
• Sealed edges that resist moisture and cleaning chemicals
• Smooth surface that allows boxes to slide easily

✅ Integrated Storage and Accessories

The best packing tables keep everything within arm's reach:

• Tape dispenser holders — mounted at working height for one-hand grab
• Roll holders — for bubble wrap, stretch film, and void fill
• Shelving and bins — for packaging materials, labels, and small items
• Monitor/scanner arm — for order management systems and barcode scanners
• Label printer shelf — positioned for easy label grab without rotation

✅ Solid, Stable Frame

A packing table takes a lot of physical abuse — boxes dropped on it, pushed across it, stacked on shelves above it. The frame must be:

• Heavy-gauge steel construction
• Welded or bolted joints (not just clips or snap-fit)
• Non-slip feet or casters with locking mechanisms

✅ Cable and Equipment Management

Modern packing stations have monitors, scanners, label printers, and sometimes weight scales. Built-in cable management keeps the workspace safe and organized — preventing trip hazards and equipment damage.

Types of Packing Tables for Different Operations

Different operations need different packing table configurations:

Standard Fixed-Height Packing Table

The most common and cost-effective option. Fixed at ergonomic standing height, with integrated storage. Best for operations with consistent team demographics.

Height-Adjustable Packing Table

Motorized or manual height adjustment for maximum ergonomic flexibility. Allows different workers to use the same station comfortably, and supports sit-stand working for long shifts.
Best for: Shared workstations, high-turnover environments, workers with specific ergonomic needs.

Double-Sided Packing Table

Two workers can pack simultaneously from opposite sides, sharing the same central storage resources. Maximizes floor space efficiency.
Best for: High-volume operations with limited floor space.

Mobile Packing Cart

A packing station on wheels — for operations where the packing location needs to move with inventory, or for flexible warehouse layouts.
Best for: Pop-up fulfillment, seasonal operations, dynamic warehouse layouts.

ESD-Safe Packing Table

A packing table designed to meet ESD standards — critical for any operation that packs electronic products, components, or devices. The work surface, frame, and accessories are all ESD-safe to prevent static damage to sensitive electronics during the packing process.
Best for: Electronics e-commerce, components distribution, any operation handling ESD-sensitive products.

The Rise of E-Commerce and the Demand for Better Packing Stations

The global e-commerce market exceeded USD 6 trillion in 2024 and continues to grow at double-digit rates. This growth has created enormous pressure on fulfillment operations to:

• Pack faster — same-day and next-day delivery expectations are the new norm
• Pack better — customer unboxing experience directly affects reviews and repeat purchases
• Pack more accurately — return rates from wrong items or poor packaging destroy margins

This is why major e-commerce operators — from Amazon fulfillment centers to Shopify brand warehouses — have invested heavily in workstation design and ergonomics. The packing table is no longer an afterthought; it's a strategic asset.

For smaller and mid-sized operations, the opportunity is even greater — because upgrading your packing stations is one of the most cost-effective ways to improve throughput without adding headcount.

ESD-Safe Packing: Why It Matters for Electronics

If your operation packs any electronic products — phones, tablets, IoT devices, sensors, components, or accessories — your packing table must be ESD-safe.

Here's why: The packing process involves extensive handling of products, often at high speed. Workers generate static with every movement. Without ESD-safe surfaces and grounding, that static discharges through sensitive electronic components during the packing process — potentially causing:

• Latent ESD damage that passes visual inspection but fails in the field
• Customer returns and warranty claims
• Reputational damage from product reliability issues

An ESD-safe packing table solves this with a dissipative work surface, grounded frame, and optionally grounded accessories — all integrated into the packing workflow without slowing anything down.

How Detall Electronics Technology Designs Packing Tables for Real-World Operations

At Detall Electronics Technology, we manufacture packing tables that are built around one principle: your packing station should make your team faster, more accurate, and less fatigued — every shift.

Our packing tables are designed with input from real fulfillment and manufacturing operations, and are available in both standard and ESD-safe configurations — making them ideal for electronics logistics and manufacturing pack-out lines.

Detall Packing Table advantages:

✔ Factory-direct manufacturing — competitive pricing without sacrificing build quality
✔ Heavy-gauge steel frames — built to withstand the daily punishment of high-volume packing
✔ ESD-safe options — for electronics packing operations requiring static control
✔ Flexible configurations — standard, height-adjustable, and custom layouts available
✔ ISO, SGS, and CE certified — documented quality for supplier audits
✔ Custom sizing and branding — OEM options for large-scale deployments

Whether you're outfitting a single packing line or a 50-station fulfillment center, Detall has the solution.

5 Signs It's Time to Upgrade Your Packing Tables

Not sure if your current packing stations are holding you back? Watch for these warning signs:

1. Packers regularly running out of reach for materials — your storage layout is inefficient
2. Workers complaining of back, wrist, or shoulder pain — ergonomics are wrong
3. High error rates — crowded, disorganized workstations lead to mistakes
4. Cable clutter — scanner and printer cables creating hazards and delays
5. Surface damage or instability — worn surfaces and wobbly frames slow everyone down

If you're seeing two or more of these, an upgrade will deliver measurable ROI within months.

Conclusion: Don't Let Your Packing Station Be Your Bottleneck

In a world where fulfillment speed, accuracy, and worker wellbeing are all competitive differentiators, your packing table is not a commodity. It's a productivity tool — and the right one makes a real, measurable difference.

Choose a packing table designed for the work you're doing, built to last, and configured for your team's needs. The investment is modest. The returns are ongoing.

Ready to Upgrade Your Packing Operation?

Detall Electronics Technology supplies purpose-built packing tables and ESD-safe packing workstations for warehouses, fulfillment centers, and electronics manufacturers worldwide.

🌐 www.detall-esd.com
📧 Contact us for a free consultation — we'll help you find the right packing table configuration for your operation and team size.

Faster packing. Fewer errors. Happier workers. Let's build that together.

Keywords: packing table, packing workstation, packaging bench, ESD packing table, warehouse packing table, e-commerce packing station, fulfillment packing table, ergonomic packing workstation, ESD safe packing table, electronics packing workstation, Detall Electronics Technology, packing table supplier

Poor workbench ergonomics doesn't announce itself with alarms. It shows up quietly — in the technician who rolls their shoulders during a morning stretch, in the quality inspector who takes extra breaks, in the assembler who's been on light duty for a week. By the time you notice the pattern, the damage is already done.

This guide walks you through a structured process for evaluating your current workbench setup, identifying ergonomic risks, and making targeted upgrades — without necessarily replacing everything you already have.

Quick Answer

To assess and upgrade industrial workbench ergonomics:

1. Audit current workstations using a posture and reach checklist
2. Identify the top risk factors (height, reach zone, force, visibility)
3. Prioritize high-impact, low-cost fixes first
4. Implement hardware upgrades where needed (height adjustment, monitor arms, tool positioning)
5. Validate with workers and re-audit after 30 days

Why Ergonomic Assessment Matters More Than You Think

The American industrial injury statistics are sobering: musculoskeletal disorders (MSDs) account for roughly 30% of all workplace injury and illness cases requiring days away from work, according to the U.S. Bureau of Labor Statistics. In electronics manufacturing and fulfillment environments, the numbers skew even higher due to fine motor tasks, repetitive motion, and static postures.

But the real cost isn't in the injury itself — it's in what surrounds it:

• Lost productivity during recovery and light-duty reassignment
• Increased error rates as workers compensate for discomfort
• Higher turnover as skilled technicians leave physically demanding roles
• Training costs for replacements

A systematic ergonomic assessment is not a compliance exercise. It's an ROI exercise. Studies consistently show that ergonomic improvements return $3–$6 for every $1 invested through reduced absenteeism, fewer errors, and improved throughput.

The Four Core Ergonomic Risk Factors at Industrial Workbenches

Before you can improve a workstation, you need to understand what you're measuring. Ergonomic risk at workbenches typically falls into four categories:

1. Posture Risk

Awkward postures are the leading cause of MSD development. At a workbench, the most common culprits are:

• Forward head tilt — screen or work surface positioned too low, forcing the neck to crane forward
• Shoulder elevation — work surface too high, causing sustained shoulder shrug
• Trunk bending — work surface too low, requiring repeated or sustained forward bend
• Wrist deviation — tools or components positioned at angles that force the wrist out of neutral

A neutral posture benchmark: when standing, elbows should hang at roughly 90–105° with the work surface at or just below elbow height. For seated work, the same principle applies with feet flat and thighs roughly parallel to the floor.

2. Reach Zone Risk

Every workbench has three functional reach zones:

When high-frequency items end up in yellow or red zones — because of habit, poor planning, or workbench overcrowding — workers make hundreds of extended reaches per shift. Over weeks and months, this translates directly into rotator cuff strain and upper back pain.

3. Force and Grip Risk

Fine assembly and inspection tasks often require more grip force than they appear to demand, especially when:

• Tools are worn or improperly sized for the worker's hand
• Components require alignment under poor lighting
• Workers compensate for awkward positioning with increased grip tension

Force-related injuries are particularly common in ESD workbench environments where technicians work with small components and precision tools for extended periods.

4. Visibility and Lighting Risk

Poor visibility drives ergonomic risk indirectly. When workers can't see clearly, they lean in, reduce working distance, and adopt forward-head postures to compensate. Over time, this creates the same neck and shoulder loading as a workbench that's simply too low.

The recommended illuminance for detailed assembly work is 500–1000 lux at the task surface, with reduced glare and appropriate color rendering (CRI ≥ 80) for color-sensitive inspection tasks.

Step-by-Step Workbench Ergonomic Assessment

Use this process for each workstation under review. It takes approximately 20–30 minutes per station when done properly.

Step 1: Worker Interview (5 minutes)

Before you measure anything, talk to the person who uses the station. Ask:

• Where do you feel discomfort at the end of a shift?
• What task do you find most tiring or awkward?
• Is there anything on this bench you wish were closer or further away?
• Have you modified the station yourself in any way?

Workers often know exactly what's wrong. Their answers will focus your observation.

Step 2: Postural Observation (10 minutes)

Watch the worker perform representative tasks for at least 5–10 minutes. Document:

• Head and neck position during primary tasks
• Shoulder elevation and forward reach frequency
• Wrist position during tool use and component handling
• Back posture (neutral, slight forward, significant forward)
• Foot position and weight distribution if standing

Use a simple scoring system (1 = neutral, 2 = slight deviation, 3 = significant deviation) for each body region. Any score of 3 is an immediate priority.

Step 3: Workbench Measurement (10 minutes)

Measure and record:

• Work surface height (from floor)
• Worker elbow height standing and seated
• Distance from front edge to primary work zone center
• Monitor/display height and distance (if applicable)
• Illuminance at task surface (lux meter or phone app)
• Shelf and storage heights for frequently accessed items

Compare measurements to neutral posture benchmarks for that worker's height.

Step 4: Reach Zone Audit

Place a piece of tape or paper at 40 cm and 60 cm from the front edge of the bench. Walk through the worker's task sequence and note which items they reach for most frequently. Mark each item:

• 🟢 Green: within 40 cm
• 🟡 Yellow: 40–60 cm
• 🔴 Red: beyond 60 cm or requiring trunk rotation

Any frequently used item in yellow or red is a reorganization target.

Step 5: Lighting Check

Using a light meter (or a calibrated app like Lux Light Meter on iOS/Android):

• Measure lux at the center of the primary work zone
• Measure lux at the secondary work zone edges
• Check for direct glare sources (overhead fixtures, windows) that create reflections on work surfaces

Common Findings and How to Fix Them

Finding: Work surface too low for standing operator

Symptoms: Forward trunk bend, neck extension to see task surface, lower back fatigue reported.

Fix options (in order of cost):

1. Raise fixed-height bench using heavy-duty leveling feet or riser blocks (low cost, limited adjustment)
2. Install anti-fatigue matting to effectively raise the worker's standing position (very low cost)
3. Replace or supplement with height-adjustable workbench frame (medium cost, highest flexibility)

Finding: Work surface too high for seated operator

Symptoms: Shoulder elevation, upper trapezius tension reported, reduced fine motor precision.

Fix options:

1. Lower chair and add footrest to maintain thigh angle
2. If seated/standing work is mixed, height-adjustable bench is the correct long-term solution

Finding: Monitor positioned too low

Symptoms: Forward head posture, neck extension, upper cervical tension reported.

Fix options:

1. Monitor arm or articulating mount (low cost, high impact)
2. Raise monitor on a stable platform as interim measure

Finding: High-frequency tools beyond 40 cm reach

Symptoms: Repeated shoulder extension, trunk rotation, or lateral lean during task.

Fix options:

1. Reorganize bench layout — move most-used items to primary zone
2. Add tool balancers or overhead suspension for hanging tools within reach
3. Reduce bench clutter to free up primary zone space

Finding: Insufficient task lighting

Symptoms: Worker leans forward, reduces working distance, adopts forward-head posture.

Fix options:

1. Add adjustable task light at bench level (low cost)
2. Replace overhead fixtures with higher-output or better-directed alternatives
3. For color inspection tasks, ensure appropriate CRI rating

Prioritizing Upgrades: The Ergonomic Impact Matrix

Not every finding is equally urgent. Use this framework to prioritize:

This approach lets you address the highest-risk stations immediately while planning broader upgrades systematically.

Hardware Upgrades Worth the Investment

If your assessment reveals systemic issues — not just individual station quirks — certain hardware investments deliver outsized returns across your facility.

Height-Adjustable Workbenches

The single most impactful ergonomic upgrade for mixed-task industrial environments. A quality height-adjustable workbench (electric or manual) accommodates:

• Different worker heights across shifts
• Transitions between seated and standing work postures
• Task-specific height requirements (assembly vs. inspection vs. packing)

Look for frames with smooth adjustment mechanisms, stable lock points throughout the height range, and load ratings appropriate for your equipment.

Articulating Monitor and Equipment Arms

For workstations where displays, microscopes, or measuring instruments are used, articulating arms dramatically improve posture by bringing the equipment to the worker rather than forcing the worker to accommodate the equipment. A quality arm pays for itself in reduced neck and shoulder complaints within a single quarter.

Tool Balancers and Suspension Systems

In assembly environments where tools are picked up and set down repeatedly, overhead tool balancers eliminate the weight-handling burden and keep tools within the primary reach zone. They also reduce dropped tool incidents and floor clutter.

Anti-Fatigue Matting

For standing workstations, anti-fatigue matting reduces lower limb fatigue and encourages small postural shifts that improve circulation. Select mats with beveled edges to eliminate trip hazards and appropriate thickness for your floor surface.

Validating Your Improvements

Ergonomic upgrades are hypotheses until they're validated. After implementing changes:

1. Re-interview workers at 2 weeks — are they using the new setup? Are there unexpected issues?
2. Re-observe posture at 30 days — have postural scores improved?
3. Re-measure reach zones — are high-frequency items now in the primary zone?
4. Track leading indicators — reported discomfort, micro-break frequency, task completion rate

If a change didn't produce measurable improvement, revisit the diagnosis. Sometimes the root cause was different than the initial assessment suggested.

Building a Continuous Ergonomics Program

A one-time assessment is valuable. A continuous program is transformative.

Best-practice industrial ergonomics programs include:

• Annual full assessments of all production workstations
• Triggered assessments after any MSD report, new worker assignment, or significant task change
• New workstation reviews before installation, not after
• Worker involvement in workstation design — the people doing the work have the best data

Organizations that embed ergonomics into their workstation design and procurement criteria stop retrofitting problems and start preventing them.

Conclusion

Ergonomic risk at industrial workbenches is measurable, addressable, and — with the right approach — largely preventable. The assessment process described here doesn't require specialized equipment or consultants for most situations. It requires observation, measurement, worker input, and disciplined follow-through.

The payoff is real: fewer injuries, lower turnover, better quality output, and workers who can perform at their best for entire careers rather than burning out in a few years of repetitive strain.

Start with your highest-risk station. Measure it. Fix what you find. Validate the results. Then move to the next one.

Detall designs industrial workbenches — including ESD-rated and height-adjustable models — built around ergonomic principles from the ground up. If you're evaluating workbench upgrades for your facility, explore our product range or contact our team for application-specific guidance.
